Temporary Fence Gates - Entrance to Temporary Sites

Temporary fence gate is commonly installed with the temporary fence panel and temporary hoardings together. With temporary fence gate, you will build a convenient entrance to your temporary sites, such as construction job sites, public events and swimming pool. We are able to provide many kinds of gates, such as pedestrian gates, vehicle gates, swing gates with wheels or without wheels and crowd control barrier gate.

Features:

• Sturdy structure. Temporary fence gate has firm structure with the infilled mesh welded on the gate frame.
• Corrosion resistance. The surface of temporary fence gate can be treated with galvanized and PVC coated, so it has good corrosion resistance.
• Attractive appearance. Temporary fence gate can be painted with blue, red and yellow powder.
• Quick and easy to install and dismantle, so it is easy to re-located for any emergency.
• Low cost and maintenance free.
• Many types to adapt to different occasions.

Specifications:
We are able to provide pedestrian temporary gate and vehicle temporary gate. Swing gates with wheels or without wheels.

Pedestrian temporary gate:

• Materials: steel.
• Wire diameter: 3 mm, 4 mm.
• Opening: 50 × 50 mm, 50 × 100 mm, 50 × 200 mm.
• Surface treatment: hot-dipped galvanized.
• Zinc thickness: 42 microns.
• Gate length: 1000 mm to 1300 mm as your need.
• Gate height: 2100 mm.
• Frame diameter: 40 mm.
  • Thickness: 1.5 mm.
• The gate size can also be same with or higher than the temporary fence panel.

TFG-1: Pedestrian temporary fence gate can be installed with the panels through clamps.

TFG-2: The inner pedestrian gate can be installed with the panel through hinges.

TFG-3: Vehicle temporary fence gate with wheels.

Vehicle temporary gate:

• Materials: steel.
• Wire diameter: 3 mm, 4 mm.
• Opening: 50 × 50 mm, 50 × 100 mm, 50 × 200 mm.
• Surface treatment: hot-dipped galvanized.
• Zinc thickness: 42 microns.
• Gate length: 2500 mm.
• Gate height: 2100 mm.
• Frame diameter: 40 mm.
  • Thickness: 1.5 mm.
• The gate size can also be same with temporary fence panel.

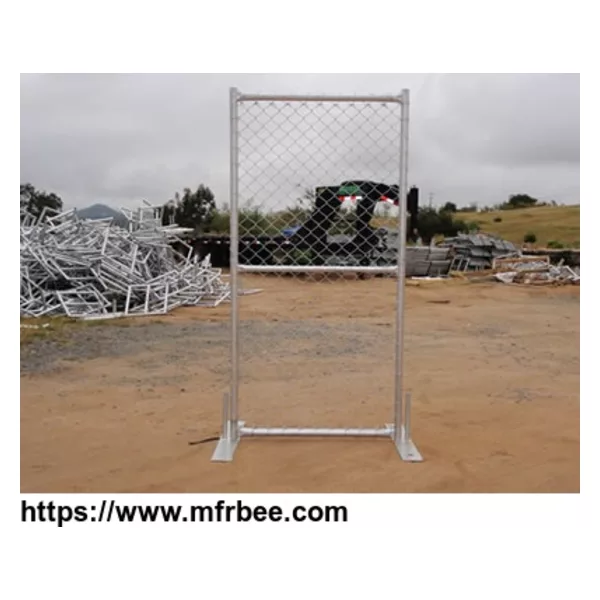

TFG-4: Chain link temporary fence gate.

Chain link temporary fence gate

• Materials: steel.
• Opening: 50 × 50 mm, 60 mm × 60 mm, 70 mm × 70 mm, etc.
• Surface treatment: hot-dipped galvanized.
• Zinc thickness: 42 microns.
• Gate height: 2000 mm.
• Gate width: 1200 mm.
• Outside frame:
  • Diameter: 40 mm.
  • Thickness: 2.5 mm.
• Middle reinforced pipe:
  • Diameter: 25 mm.
  • Thickness: 1.5 mm.

TFG-5: Crowd control barrier gate.

Crowd control barrier gate:

• Materials: steel.
• Surface treatment: hot-dipped galvanized.
• Zinc thickness: 42 microns.
• Gate width: 51".
• Gate height: 120".
• Outside frame:
  • Diameter: 40 mm.
  • Thickness: 1.5 mm.

We also provide wheels for pedestrian or vehicle gates those installed in flat sites.

Specifications:

• Materials: non-pollution rubber.
• Rubber color: red, white, blue and other colors.

TFG-5: Temporary fence gate can be installed a wheel with bolts and nuts.

TFG-6: Vehicle gates with wheels will be more smooth and convenient.

Applications:
Temporary fence gate can be installed with temporary fence in different sites. For example:

• The vehicle or pedestrian gate will provide a safety entrance to your temporary sites.
• The temporary gate can be used to keep order with crowd control barrier and provide an entrance for staffs in sports events, festival, concerts and other public events.
• The temporary fence gate that is installed with the temporary fence panels
