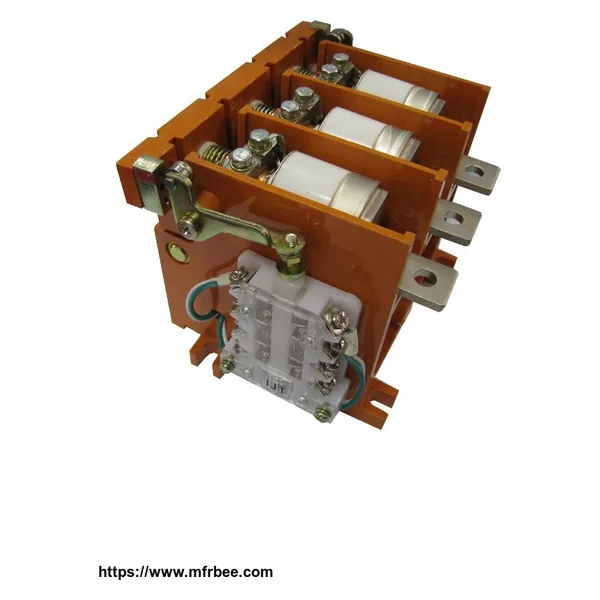

HVJ5 1.14kv 125A AC vacuum contactor

1. General

HVJ5 1.14kv 125A AC vacuum contactor is designed for long-distance making and breaking of circuit, frequent starting and controlling of AC motors in the power systems, with AC 50Hz-60Hz, rated voltage of 1,140V and rated current to 125A. It also can be equipped with thermal relay and all kinds of protection apparatus like electromagnetic starter, especially applied to explosion-proof starter and so on.

1. Main technical parameter

Rated voltage: 1140 V

Control voltage: 36V, 110V, 220V, 380V

Rated current: 125A

Opening distance: 1.8±0.2 mm

Over travel: 1±0.2 mm

Final pressure: 30±3 N

Main circuit power frequency voltage withstand: 4200 V

Auxiliary circuit power frequency voltage withstand: 2500 V

Control circuit power frequency voltage withstand: 2000 V

Making capacity: 10Ie,100 times

Breaking capacity: 8Ie,25 times

Limit breaking current(A): 2000,3 times

Electricity life times AC3: 60*104

Electricity life times AC4: 60*104

Mechanical life times: 300*104

Overload capacity: 8Ie 10 S

Remark: “Ie” is Rated current of main circuit.
