TOSHIBA TLP2168

Manufacturer: Toshiba

Product Category: High Speed Optocouplers

RoHS: Details

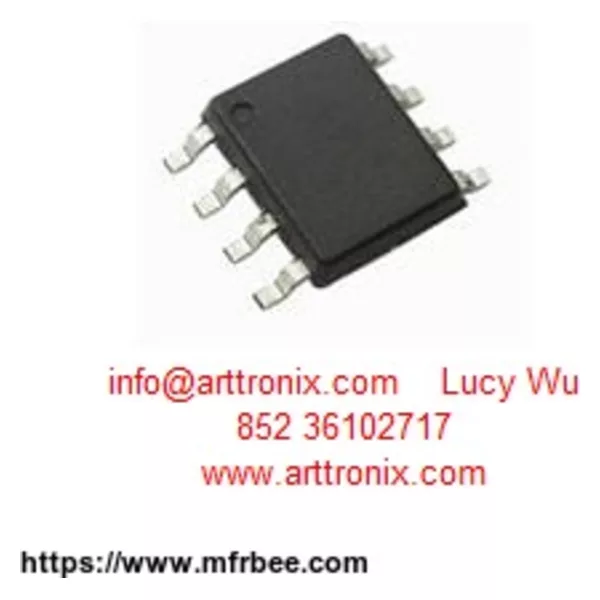

Package / Case: SO-8

Data Rate: 20 Mbps

Number of Channels: 2 Channel

Output Type: Open Collector

Isolation Voltage: 2500 Vrms

Vf - Forward Voltage: 1.57 V

If - Forward Current: 10 mA

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 40 mW

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 125 C

Packaging: Tube

Height: 2.5 mm

Length: 5.1 mm

Output Current: 25 mA

Width: 3.95 mm

Brand: Toshiba

Fall Time: 30 ns

Operating Supply Voltage: 3.3 V/5 V

Product Type: High Speed Optocouplers

Rise Time: 30 ns

Factory Pack Quantity: 100

Subcategory: Optocouplers
