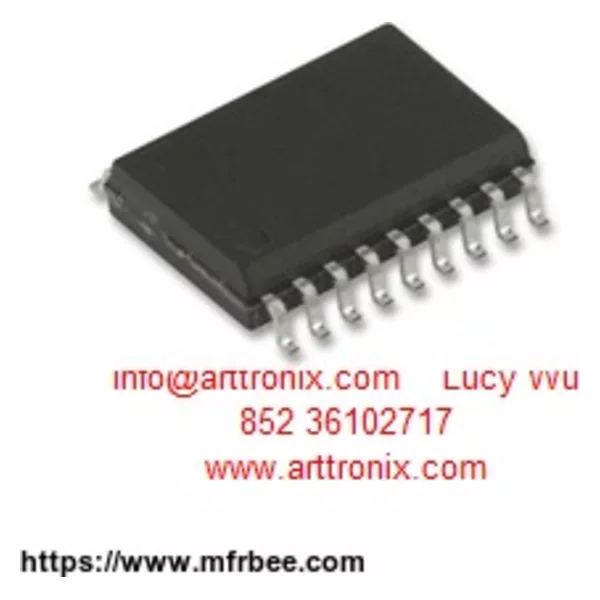

TOSHIBA TB6549FG

Categories Integrated Circuits (ICs)

PMIC - Motor Drivers, Controllers

Manufacturer Toshiba Semiconductor and Storage

Series -

Packaging ? Tape & Reel (TR) ?

Part Status Active

Motor Type - Stepper -

Motor Type - AC, DC Brushed DC

Function Driver - Fully Integrated, Control and Power Stage

Output Configuration Half Bridge (2)

Interface PWM, Serial

Technology Bi-CMOS

Step Resolution -

Applications General Purpose

Current - Output 3.5A

Voltage - Supply 10 V ~ 27 V

Voltage - Load 10 V ~ 27 V

Operating Temperature -20°C ~ 85°C (TA)

Mounting Type Surface Mount

Package / Case 20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs

Supplier Device Package 20-HSOP

Base Part Number TB6549
