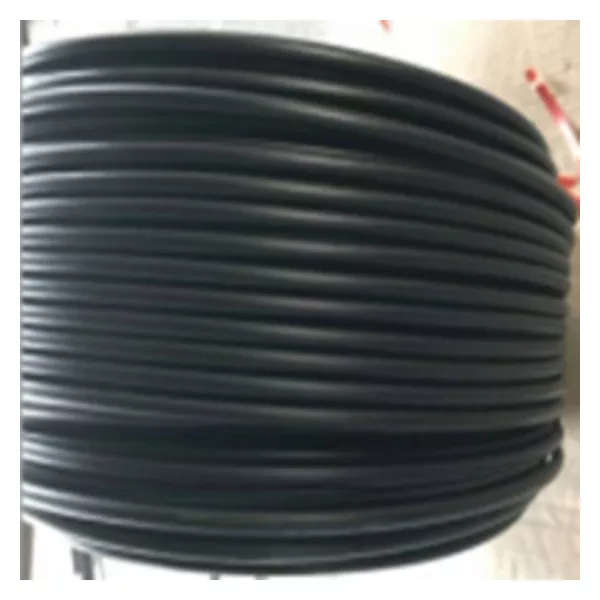

Sampling heated tube

1. Introduction

Ø Sampling heated tube is one important part of the environment protection monitoring system, widely used forSCNR,SNR,waste incineration and other emission sampling.

2. Specifications

Ø Gaspipe material:PVDF, PTFE, 316L, PFA

Ø Black knit anti-scratch layer

Ø Air tube size: OD8/6mm,OD6/4mm (optional)

Ø Power consumption: 10-100W/M (depending on heating tempeature)

Ø Power supply: 220VAC 50HZ

Ø Sample gas heated temperature：50℃~220℃

Ø No breakpoint and cold point all the way

Ø Using temperature controller to control heating temperature precisely

Ø Excellent heat preservation effect

Ø Heated tube external diamete:OD38±2mm；OD42±2mm

Ø Minimum bending: 0.5m

Ø Lowest working temperature:-20℃

Ø Minimum installation distance: vertical 2m, horizonal 4m.
