Product Dimensions
|
10 x 4 x 1.5 mm
|
|
Number of Outputs per Chip
|
4
|
|
Number of Channels per Chip
|
4
|
|
Pin Count
|
16
|
|
Input Signal Type
|
Single
|
|
Lead Finish
|
Matte Tin
|
|
Typical Dual Supply Voltage
|
±5|±9|±12|±15|±18 V
|
|
MSL Level
|
1
|
|
Polarity
|
Non-Inverting
|
|
Number of Inputs per Chip
|
4
|
|
Maximum Single Supply Voltage
|
36 V
|
|
Type
|
Analog Switch
|
|
Max Processing Temp
|
260|300
|
|

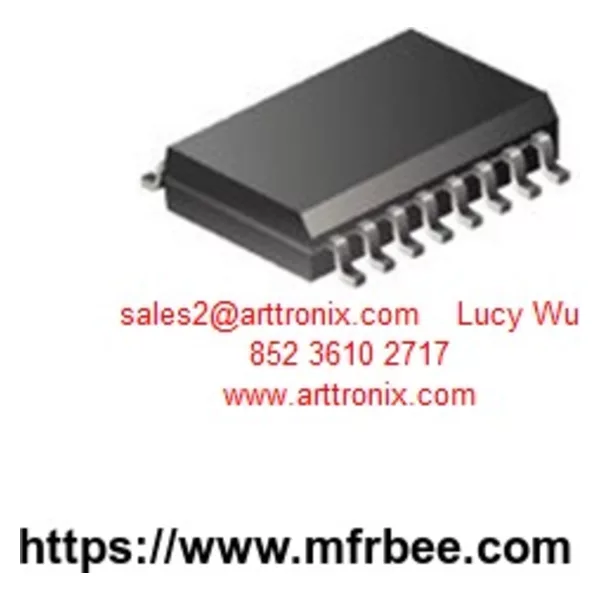

Supplier Package
|
SOIC N
|
|
Maximum High Level Output Current
|
100 mA
|
|
Typical Supply Current
|
±0.000001@±15V mA
|
|
Operating Temperature
|
0 to 70 °C
|
|
Maximum On Resistance
|
8@12V Ohm
|
|
Mounting
|
Surface Mount
|
|
Typical Single Supply Voltage
|
5, 9, 12, 15, 18, 24, 28 V
|
|
Maximum Low Level Output Current
|
100 mA
|
|
Output Signal Type
|
Single
|
|
Chip Enable Signals
|
Yes
|
|
Minimum Dual Supply Voltage
|
±4.5 V
|
|
Maximum Power Dissipation
|
696 mW
|
|
Maximum Supply Current
|
±0.0005@±15V mA
|
|
Maximum Dual Supply Voltage
|
±20 V
|
|
Configuration
|
Quad SPST
|
|
Maximum On Resistance Range
|
5 to 10 Ohm
|
|
Maximum Turn-On Time
|
400@12V ns
|
|
Minimum Single Supply Voltage
|
4.5 V
|
|
Power Supply Type
|
Single|Dual
|
