Description :

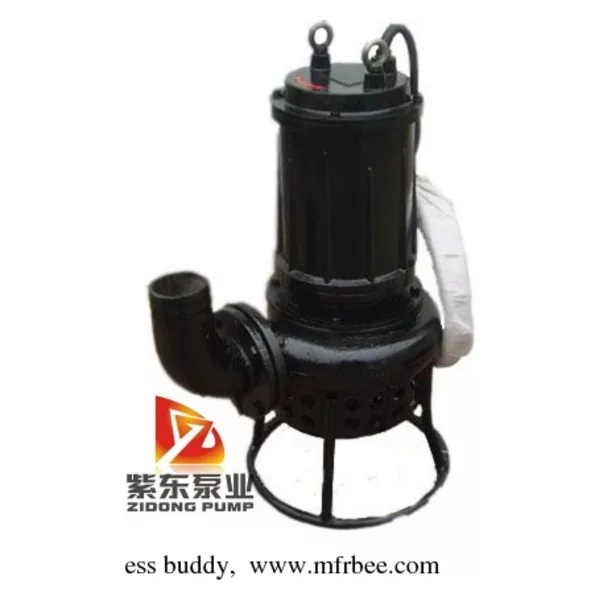

submersible sand dredging pump
Technical parameter :
Discharge Cabliber: 50-400 mm
Flow: 10-3300m3/h
Head: 5-60 m
Power: 3-315Kw
Speed: 980-1460 r/min
Impeller Number : 2
Product overview :
1. NSQ Submersible Dredge Pump is pump and pump motor coaxial , when it worked the pump and the motor all dived into the medium. The pump flow parts are all adopted high alloys materials manufactured, with good performance on abrasion resistance, the big flow channel used to transfer large sediment of solid particles, pulp, coal slurry, sandstone, and other media .
2. This Series of submersible dredge pumps adopted domestic and foreign advanced technology design and manufacture, also the pump itself add a set of stir impeller , can spray the deposition , mak the pump realize high concentrations of transmission when no auxiliary devices .
3. Unique sealing device can effectively balance the oil pressure inside and outside, Maximum protection of mechanical seal reliability, the motor adopted overheating protection, water detection protection etc .
