Faraday Cage
Product Quick Detail
- 1
- 1
- 1
- 1
- 1
- 1
- Packaging
- 12 pcs each PVC box
- Delivery
- 15 Days
Specifications
Faraday Cage Effectively Used for Radio Wave Blocking
Faraday cage, also known for Faraday shield, is an enclosure made of conductive materials, which are mainly including woven copper mesh
Copper mesh with good features is really a good material for Faraday cage.

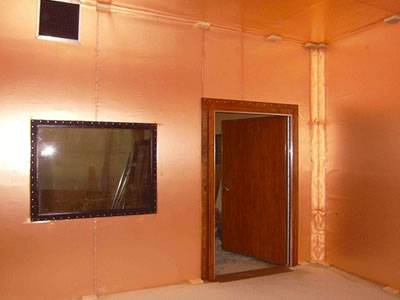

Faraday cage made of copper mesh can be used in the laboratory to do experiments.
The Faraday cages can be manufactured in different shapes and sizes to meet your different requirements. But all of them produced using copper metal screen can conduct electricity to create a shielding effect.
We can provide samples for testing, but sorry that we usually don't bear the freight.
Specifications
Material: fine woven copper mesh

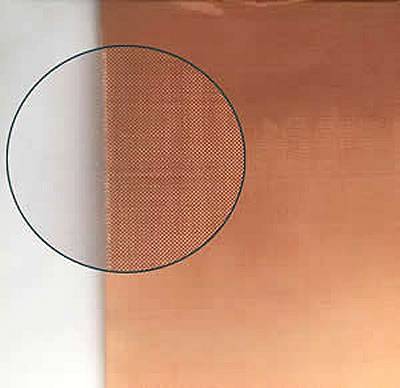

The plain woven copper mesh with different wire diameters and open areas.

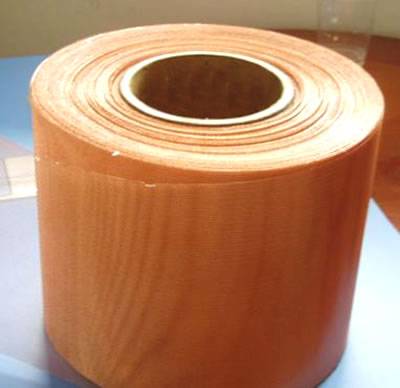

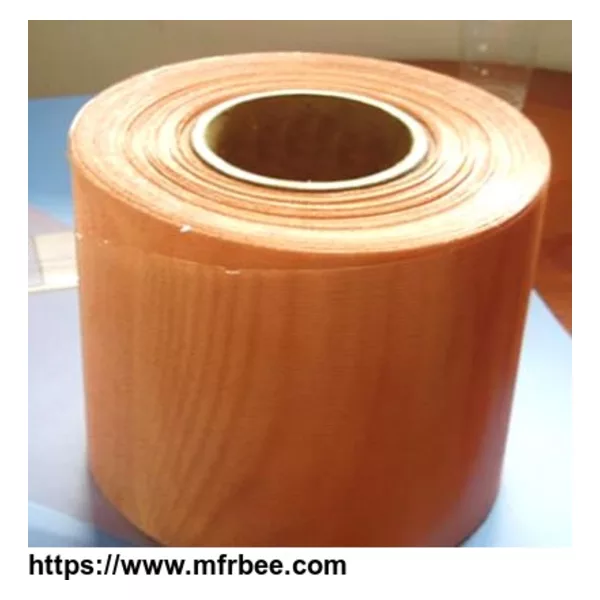

The woven copper mesh is sold in roll.
| Item | Mesh | Wire Diameter (inch) | Width of Opening (inch) | Open Area (%) | Weave Pattern |
|---|---|---|---|---|---|
| BFC-01 | 12 | 0.047 | 0.036 | 19.0 | Plain |
| BFC-02 | 12 | 0.032 | 0.051 | 37.9 | Plain |
| BFC-03 | 12 | 0.020 | 0.063 | 57.8 | Plain |
| BFC-04 | 12 | 0.014 | 0.069 | 69.2 | Plain |
| BFC-05 | 14 | 0.035 | 0.036 | 26.0 | Plain |
| BFC-06 | 14 | 0.018 | 0.053 | 56.0 | Plain |
| BFC-07 | 14 | 0.0135 | 0.058 | 65.8 | Plain |
| BFC-08 | 14 | 0.010 | 0.061 | 74.0 | Plain |
| BFC-09 | 16 | 0.032 | 0.031 | 23.8 | Plain |
| BFC-10 | 16 | 0.016 | 0.047 | 55.4 | Plain |
| BFC-11 | 16 | 0.009 | 0.054 | 73.3 | Plain |
| BFC-12 | 18 | 0.028 | 0.028 | 24.6 | Plain |
| BFC-13 | 18 | 0.020 | 0.036 | 41.0 | Plain |
| BFC-14 | 18 | 0.0135 | 0.042 | 57.3 | Plain |
| BFC-15 | 20 | 0.028 | 0.022 | 19.4 | Plain |
| BFC16 | 20 | 0.017 | 0.033 | 43.6 | Plain |
| BFC-17 | 20 | 0.010 | 0.040 | 64.0 | Plain |
| BFC-18 | 24 | 0.023 | 0.019 | 20.1 | Plain |
| BFC-19 | 24 | 0.016 | 0.026 | 37.9 | Plain |
| BFC-20 | 24 | 0.010 | 0.032 | 57.8 | Plain |
| BFC-21 | 24 | 0.0075 | 0.034 | 67.2 | Plain |
| BFC-22 | 28 | 0.018 | 0.018 | 24.6 | Plain |
| BFC-23 | 28 | 0.012 | 0.024 | 44.1 | Plain |
| BFC-24 | 28 | 0.009 | 0.027 | 56.0 | Plain |
| BFC-25 | 30 | 0.016 | 0.017 | 27.0 | Plain |
| BFC-26 | 30 | 0.009 | 0.024 | 53.3 | Plain |
| BFC-27 | 35 | 0.016 | 0.013 | 19.4 | Plain |
| BFC-28 | 35 | 0.135 | 0.015 | 27.8 | Plain |
| Item | Mesh | Wire Diameter (inch) | Width of Opening (inch) | Open Area (%) | Weave Pattern |
|---|---|---|---|---|---|
| BMC-01 | 50 | 0.012 | 0.008 | 16.0 | Plain |
| BMC-02 | 50 | 0.009 | 0.011 | 30.3 | Plain |
| BMC-03 | 50 | 0.0075 | 0.013 | 39.1 | Plain |
| BMC-04 | 60 | 0.0075 | 0.006 | 11.6 | Plain |
| BMC-05 | 60 | 0.008 | 0.009 | 27.0 | Plain |
| BMC-06 | 60 | 0.007 | 0.010 | 33.6 | Plain |
| BMC-07 | 60 | 0.006 | 0.011 | 41.0 | Plain |
| BMC-08 | 65 | 0.0075 | 0.008 | 26.3 | Plain |
| BMC-09 | 65 | 0.0065 | 0.009 | 33.4 | Plain |
| BMC-10 | 70 | 0.009 | 0.0053 | 13.7 | Plain |
| BMC-11 | 70 | 0.0075 | 0.0068 | 22.6 | Plain |
| BMC-12 | 70 | 0.006 | 0.0083 | 33.6 | Plain |
| BMC-13 | 75 | 0.007 | 0.0063 | 22.6 | Plain |
| BMC-14 | 75 | 0.006 | 0.0073 | 30.3 | Plain |
| BMC-15 | 80 | 0.0075 | 0.0050 | 16.0 | Plain |
| BMC-16 | 80 | 0.006 | 0.0065 | 27.0 | Plain |
| BMC-17 | 80 | 0.005 | 0.0075 | 36.0 | Plain |
| BMC-18 | 90 | 0.006 | 0.0051 | 21.2 | Plain |
| BMC-19 | 90 | 0.005 | 0.0050 | 25.0 | Plain |
| BMC-20 | 100 | 0.005 | 0.005 | 25.0 | Plain |
| BMC-21 | 100 | 0.003 | 0.007 | 49.0 | Plain |
| BMC-22 | *200 | 0.002 | 0.003 | 69.2 | Plain |
* Fine copper mesh with 200 mesh count and 0.002" wire diameter is our star product. Many our customers choose this type.
Please help provide the detailed specifications according to this picture before you send expanded copper mesh inquiry.
We can offer you expanded copper panel in different sizes.
Please help provide the detailed specifications according to this picture before you send perforated copper mesh inquiry.
Perforated copper panel wrapped in plastic then put into wooden cases.
Expanded copper mesh can act as ground mesh to protect electronic equipment against lightning strikes and electrostatic discharges
Features
- Made of 100% pure copper.
- High conductivity and shielding.
- Excellent thermal.
- Anti-rust and anti-corrosion to withstand extreme conditions.
- Beautiful appearance with red-orange metallic luster.
Applications
- Used in the laboratory to do experiments.
- Electrical linemen wear Faraday to work on high voltage power lines safely.
- Applied in analytic chemistry, reducing noise to make exact measurements.
- Protect the electronic equipment from being attacked by lightning.
- Radio wave blocking against electronic eavesdropping, for example the confidential meeting.
- Used in automobile, cars and airplane, protecting passengers from electric charge.
