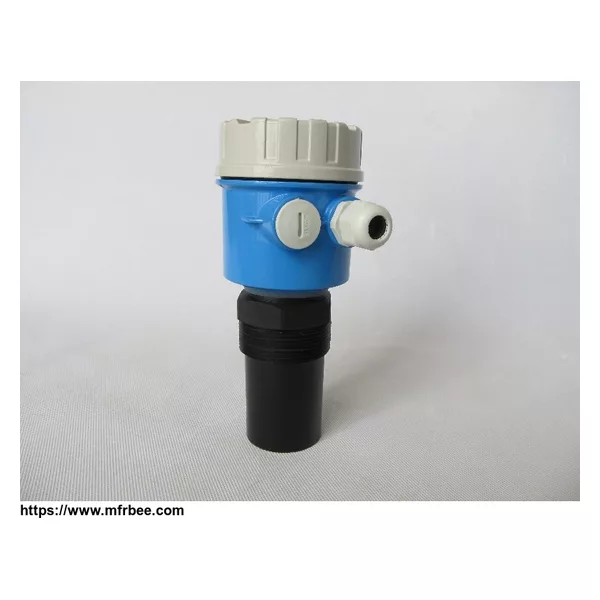

Industrial Ultrasonic Level Transmitter ULT-113A

Industrial Ultrasonic Level Transmitter ULT-113A

ULT-113A is a kind of untouchable level meter with low cost and easy installation. It uses advanced aerospace technology at civil industry. Different with general level meter, the ultrasonic level transmitter has characteristics of durability, simple and beautiful looking, professional and reliable function, it could be used for level testing in area of electricity, metallurgy, petrochemical, food, water treatment, paper and normal corrosive solution.

Ⅱ Characteristics

1、Wide range, high accuracy, low consumption;

2、Untouchable measure, no movable parts

3、Both liquid or solids could be tested.

4、Method of scientific echo wave tracking, catch real echo wave efficiently.

5、Temperature compensation (speed、 frequency),making measure results more accurate and reliable.

6、Analogue、 switch output

7、Not effected by factors: concentration of liquid; electrical characteristic of solids.

8、Vigorous activity or foam at liquid surface do not affect the measurement.

9、Electrical parts could be replaced without open the accumulator.

Ⅲ Technical parameters

1、Wire connection: G2" 2、Wire inlet:M20*P1.5

3、Test media: liquid / powder 4、Voltage（V）:20～36

5、Voltage drop（V）:<3.5 6、Reverse polarity protection: yes

7、Overload protection: yes 8、Temperature compensation: yes

9、Automatic efficiency calibration: yes 10、Watchdog timer: yes

11、Currency(mA):50 12、Accuracy/error（%）：±0.1%

13、Min resolution（mm）：1 14、Output response time(s)：1.5

15、Output: three-wire system, 4~20mA output

16、Switching max output load（mA）：400

17、Analogue output load（ohm）：4～20mA,max（Ub-10V）*50

18、Switch output specs:①normal open/close could be set ②PNP output or NPN output could be set ③SP point and RP point could be set

19、Environmental temperature（℃）：-40~80

20、Temperature for storage（℃）：-40~80

21、Insulation resistance（M）：>100（1500VDC）

22、Shell material: Aluminum alloy,ABS,PA+GF

22、Sensor frequency（KHz）：50 23、Emission angel:<15℃

24、Range（m）:0.3~10 25、Dead zone（cm）：≤30
