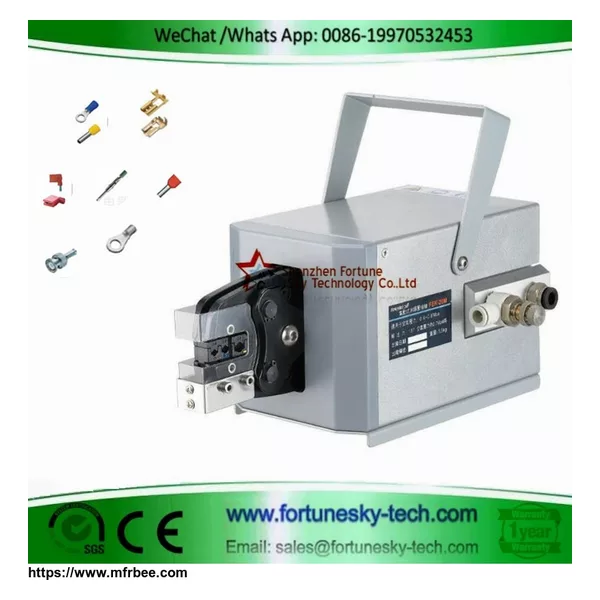

FEK-30J Pneumatic Ferrules Crimping Press

Multiple purpose,it can crimp different terminals with different crimping die sets.

The common type or pressure protected type foot switches are for selection.
This pneumatic terminal crimping machine

Parameters:
Model No.: FEK-30J
Net weight: 4.8KG
Output: 2.0T
Air pressure scope:0.5-0.7MPa
Dimension:286x125x165mm

Terminal Model	Crimping Scope (SQMM)
	Ferrules 0.25-35 SQMM
	Twin ferrules 2×0.5,1.0,1.5,2.0,2.5,4,6,10 SQMM
	Insulated O type or Y type terminals, 1.0,2.0,2.5,4.0,6.0 SQMM
	Non-insulated O type or Y type terminals, 0.5,1.0,1.5,2.0,2.5,4.0,6.0,10.0,16.0,25.0 SQMM
	Males or females receptacles, 1.0,2.0,2.5,4.0,6.0 SQMM
	Contact pin for rectangular connector, 1.0,2.0,4.0 SQMM
