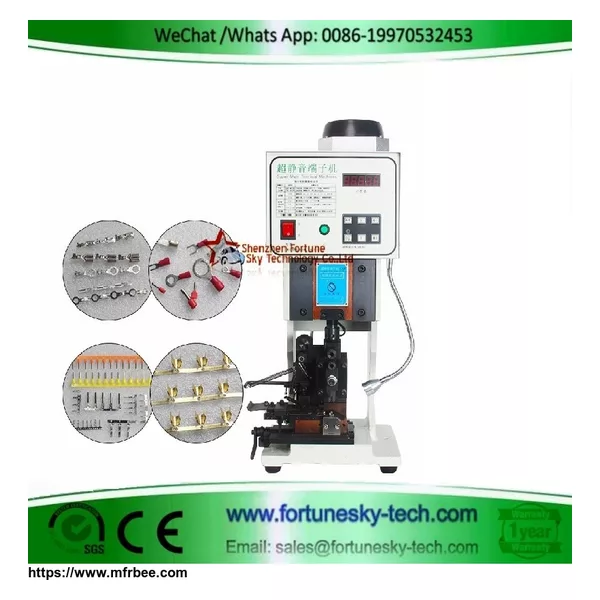

This single granule terminal crimping machine(benchtop crimping press) adopts high-tech inverter technology, electronic precision positioning, avoids traditional terminal crimping machine clutch electromagnet common failure.
Characteristic Description
v Power saving environmental protection, motor runs when machine is working.
v Machine mould continuum, no need to change mould, quick save time.
v Voltage stability, speed, high accuracy.
v Suitable for crimping computer terminal, DC terminal, single grain terminal, joint terminal.
v Light and handy structure, easy moving workplace, mute operation.
Specifications
Model No. | LL-1.0T | LL-1.5T | LL-2.0T | LL-3.0T | LL-4.0T |
MaxPressure | 1 Ton | 1.5Ton | 2.0Ton | 3.0Ton | 4.0Ton |
Mold Type | Fixed Mold | OTP Mold,#2000 Mold, JST Mold etc | |||
Power Supply | 220V/50Hz | ||||
Air Pressure | Full Electric, No need air compressor | ||||
Power Rating | 250W | 550W | 750W | 1000W | 1500W |
Net Weight | 25KG | 35KG | 50KG | 55KG | 75KG |
Size (MM) | 250x210x460 | 280x250x600 | 320x280x650 | 320x280x660 | 350x320x720 |
1.This fully automatic AWG32-14wire terminal crimping machin use true color touch screen,easy to operate,precise stepping motor and its driver,accurate and stable. 2. The parameters can be adjusted by setting the touch screen: whether the wire both ends are fully stripped or ...
Manufacturers supply automatic, semi-automatic terminal machines, stripping machine single head and double head connector crimping machine 6.3 plug spring VH mute terminal machine, cast iron machine servo terminal machine punch terminal machine for OTP transverse mode OTP ...
