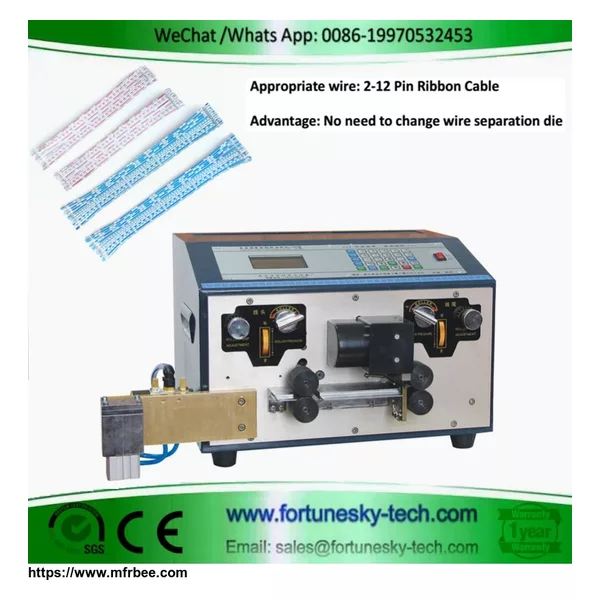

This automaticflat ribbon cable strip cut split machineusing the hybrid drive microcomputer LCD display control system, cutting, stripping and both-ends splitting in red white flat ribbon cable, blue white flat ribbon cable, gray flat ribbon cable, double flat ribbon cable can be finalized in one time,computer control both-ends splitting length, does not require the replacement of mold, operation is simple and easy to understand.
Technical Parameters
Mode | BJ-900+T |
Function | Flat ribbon cable cutting, both-ends stripping and splitting, intermediate stripping |
Applicable Wire Range | 2 Pins-12Pins |
Processing Speed | 2000-4000 pieces per hour (decide by wire material) |
Cutting Length | 0.1mm-99999.9mm |
Intermediate stripping nos. | 13 strips |
Stripping Length | Stripping wire head: 0.1-25mm Stripping wire tail:0.1-20mm |
Accuracy of entry & outlet wire motor | Mute hybrid stepping motor 0.1mm per step |
Remark Function | Auto-entry wire, Auto-outlet wire, timing start |
Driving Mode | Six wheels driven |
Dimension | 510X340X340MM |
Net Weight | 40KG |
Cutter Material | Import tungsten steel/Highspeed steel |
