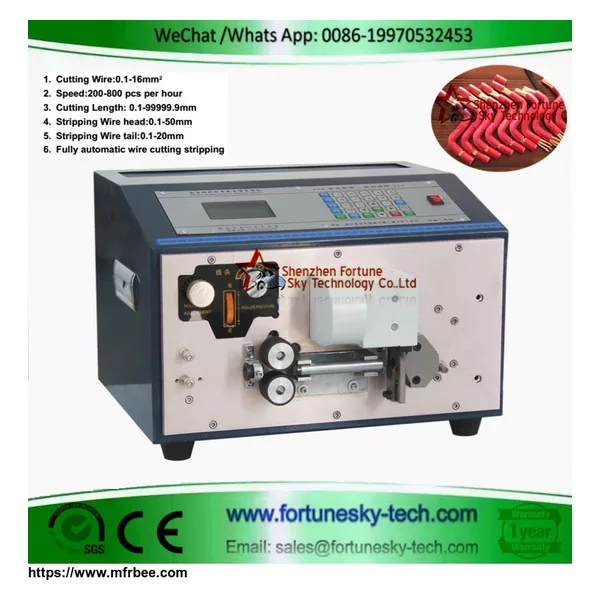

Automatic Wire Cut Strip Bending Machine

Place Of Origin
China
Minimum Order
1
FOB Price
USD $9,999.00 / Piece
Packaging
Wooden Box
Delivery
3 Days

This fullyautomatic wire cut strip forming machineuses hybrid drive microcomputer full LCD control system, for car wiring harness,electricity,power distribution box,battery box and other industries, cutting, stripping, dual direction 30 degree to 90 degree forming.

Model No. BJ-900 (16 mm2) BJ-900 (25 mm2) BJ-900 (6 mm2)
Function Wire cutting,stripping,bending
Cutting Wire 0.1-16mm2 0.1-25mm2 0.1-6mm2
Production/Speed 200-800 pcs/hour (decided by wire)
Cutting Length 0.1-99999.9mm
Stripping Length Wire head:0.1-50mm

Wire tail:0.1-20mm

Wire head:0.1-30mm

Wire tail:0.1-20mm

Stepper Motor Accuracy Mute hybrid stepper motor 0.1mm per stepping
Remark Function Automatic inlet wire, automatic outlet wire,timing start
Driving Mode Four wheels driven Two wheels driven
Machine Size (mm) 530(L)x420(W)x370(H) 420(L)x297(W)x345(H)
Machine Weight 38kg 30kg
Blade Material Import tungsten steel/highspeed steel
