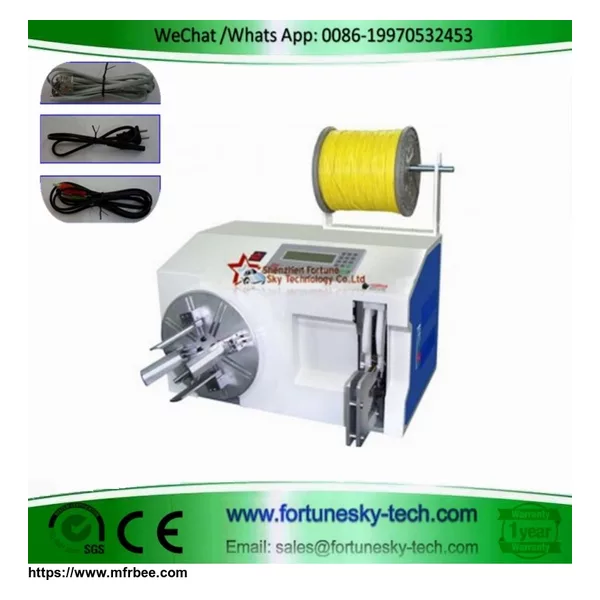

Automatic Wire Cable Coiling Tying Machine

Minimum Order
1
FOB Price
USD $999.00 / Piece
Place Of Origin
China
Packaging
Wooden Box
Delivery
3 Days

ThisAutomatic Wire Cable Coiling Tying Machineis equipped with stepper motors, adopted PLC touch screen to control cable tie length, automatic cut the cable tie and twist it. The winding speed and winding cycle are both adjustable. This machine is widely used to process AC/DC power cord, USB data cable, video cable, HDMI cable, and other types of transmission line.


Model No. TQ5-30 TQ 15-45
Applicable Nylon Tie Binding Length 65-140 MM 110-190 MM
Binding Diameter 5-30 MM 15-45 MM
Binding Speed 1 second per binding
Winding Spacing 50-200 MM 50-250 MM
Winding Speed 1-10 circles (adjustable)
Working Voltage AC220 50/60HZ
Power <200W
Size 700x550x400 MM
Net Weight 45KG
