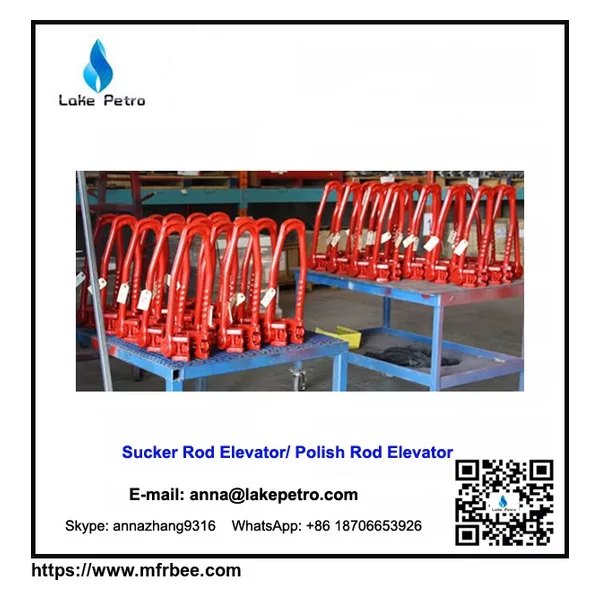

API CDQ Sucker Rod Elevator for sale

1. Product performance standards: API 8A and SY / T5235.

2. Environmental conditions used Sucker Rod Elevator
a) Allows the use at a temperature of -18 ℃ ~ 70 ℃.
b) Meet the harsh conditions of oil field operations.

3. Sucker Rod Elevator's types: reed.

4. Material requirements: kava body is made of high-quality high-strength steel, handles made of high quality alloy forged steel.

5. Sucker Rod Elevator main technical parameters:
a) Applicable rod outer diameter: 5 / 8in ~ 1 1 / 8in.
b) Maximum load: 15t (135kN), 25t (225kN).

6. Sucker Rod Elevator major quality control requirements:
1) the chemical composition of each batch of material compliance with the relevant standards.
2) Body 10% radiographic flaw detection, high stress area to meet the requirements of grade Ⅱ GB / T5677, the remaining parts of the meet GB Ⅲ level requirements / T5677's.
3) Mechanical Properties Body of not less than: Rm≥640 PMa, RP0.2≥540 PMa, Z≥15%, A≥25%,AKV≥42J (-20 ℃).
4) product 10% for 1.5 times the testimony load test.
5) All parts for magnetic particle testing, high stress area to meet the requirements of grade Ⅱ GB / T9444, the remaining parts of the meet GB Ⅲ level requirements / T9444's.
6) The main products from raw materials to the carrier using the site dating back the whole process.

7. Sucker Rod Elevator structure diagram and parts list below:
CDQ (S) Sucker Rod Elevator structure diagram.
