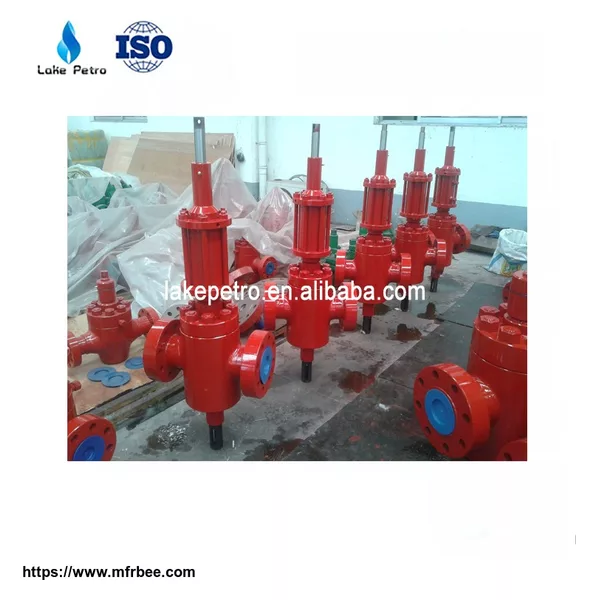

Api 6A hydraulic gate valve 4 1/16 10000PSI

The main characteristic:

♦Forged body & bonnet

♦Low operation torque

♦Metal-to-metal body/bonnet seal

♦Metal-to-metal backseal seal can be energized

regardless of gate position

♦Lubrication fittings for easy maintenance

♦Gate guides retain body lubricants and protect gate

♦Manual or actuated operation

♦Simple design assures low cost

♦Flanged or screwed outlets

Specification:

Working Pressure: 2000psi~20000psi

Nominal Bore: 1.13/16″~7.1/16″ (46mm~180mm)

Working Medium: oil, natural gas, mud and gas containing H2S and CO2

Working Temperature: -46℃~121℃(Class LU)

Material Class: AA, BB, CC, DD, EE, FF, HH

SpecifIcation level: PSL1~4

Performance Requirement: PR1~2

Product Description

API 6A FC gate valves are handwheel operated valves. The gate of the MODEL FC

valve is a one piece slab gate that uses two floating seats to generate a highly

reliable seal. The slab gate eliminates the chance of trapping pressure within the

body cavity which can cause pressure locking.
