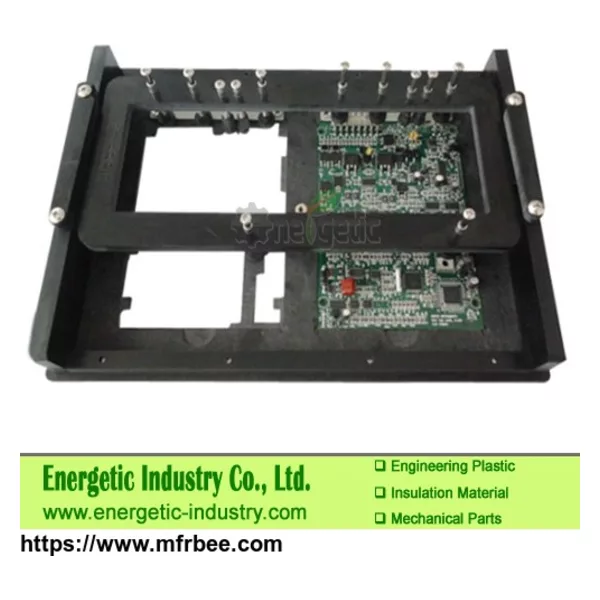

PCB Assembly Wave Solder Pallet Fixture and Jig

FOB Price
USD $16.00 / Piece
Place Of Origin
CHINA
Color
Black
Continue Working Temperature
280°C
Thickness
2mm ~ 50mm
Minimum Order
1
Size
1020mmx1220mm, 1220mmx2440mm, Customized
Lead Time
3 ~ 5 days
Short Working Temperature
385°C(10~20 secs)
Packaging
By carton sheet according to quantity
Delivery
15 Days
  • - thickness and sizes can be customized according to drawing.
  • - Different types and grades material available for wave solder pallet

Types Included:

A Anti-static Grade CAS761(black), Anti-Static Optical CAG762(grey), Flux Resistant CFR767(black)


About Wave Solder Pallet:

Our solder pallet is good machined with tight tolerance and use heavy-duty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. It can keep it’s mechanical strength, smoothness and original color when continuously used under the temperature of 280°C(max. working temperature below 385°C(10~20 secs).


Advantages:

Our solder pallet material recognized worldwide and appreciated for their high temperature resistance, excellent machinability, chemical resistance, static dissipative properties and are sensor detectable.


Key Features:

▪ Normal working temperature at 280℃, operating temperature up to 360 ℃

▪ Less distortion, low thermal conductivity

▪ Superior dimensional stability, Long life

▪ High temperature resistance

▪ Resistance to chemical corrosion

▪ High mechanical strength

▪ Good dimensioin


Applications:

▪ PCB Wave soldering and reflow soldering

▪ Electronic components automatic cartridge

▪ Solder paste screen printing

▪ SMT Surface Mount technology

▪ IR reflow curing

▪ Online testing
