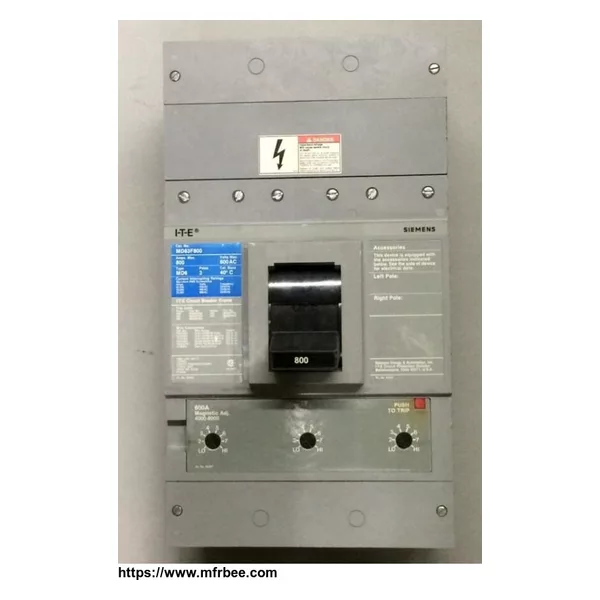

SIEMENS MD63F800
Product Quick Detail
- FOB Price
- USD $111.00 / Piece
- Place Of Origin
- United State
- Minimum Order
- 1
- Packaging
- with factory sealed
- Delivery
- 2-3 days
Specifications
| Part Number | MD63F800 |
| Manufacturers | Siemens |
| Sub-Category | Molded Case |
| Family | Sentron Series |
| Type | MD |
| Phase | 3 |
| Poles | 3 |
| Voltage | 600 |
| Amperage | 800 |
| Connection | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| AIC Rating | 50kA@480V |
| Frame Size | MD Frame |
| SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. FRAME FOR MD FRAME WITH STANDARD BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 800A 3-POLE BREAKER (25KAIC AT 600V) (50KAIC AT 480V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA3K500) WIRE RANGE: 1/0AWG - 500KCM (CU/AL). DIMENSIONS (W x H x D) IN: 9 x 16 x 6 |
