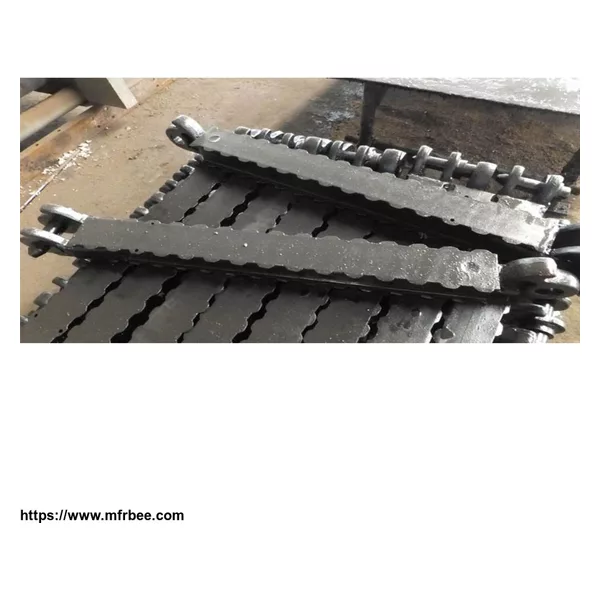

Introduction of Mining Support Articulated Roof Beam

DJB Mining Articulated Roof Beam can be used with all types of single metal pillar with the composition of metal stets for the horizontal and gently inclined coal mining face supporting roof beams of a high-intensity beam energy because of this top coal face cantilever retaining wall in front Road transport aircraft above the roof, walls and pillars of coal between a larger space without support, it is using the new flexible transport and mining machinery, mining general mechanization to achieve the conditions for general mining, and new high-end luxury mining technology necessary equipment. Hinged roof beams to achieve cantilever support, the coal pillar between the wall and have a larger space without support for the realization of mechanization of coal mining generally provided the conditions. The product is only suitable for blasting mining face, but also the high-grade mining face roof support necessary equipment hinged roof beams are mainly based on the π-beams made of welded parts.

Main Parameter of Mining Support Articulated Roof Beam

Length 800mm,1000mm,1200mm

Model DJB-800/420 DJB-1000/300 DJB-1200/300

Material 27simn

Width 100mm

Height 90mm

Thickness 8mm

Length 1000mm

Processing quenching and tempering (heat treatment)

Load capacity larger than 300kN
