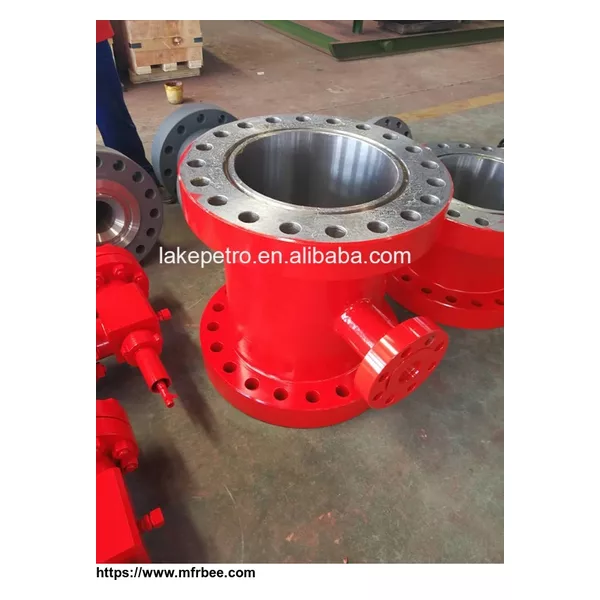

API 6A 16 3/4 flanged drilling spools 3000psi

API 6A 16 3/4 flanged drilling spools 3000psi

Introduction:

Drilling spool is the parts which are often used in the oilfield for wellhead extension, choke and kill manifold, etc. It is designed and manufactured in accordance with API 6A and API 17K standard, it usually has the same nominal end connections. Eternal company specializes on the manufacturing all sizes and pressure ratings used for oilfield applications. So many spools have been applied on many oilfields all over the world. We can also design customizable ideal spools for reliable and consistent performance on their production system. Our products have been exported to many countries, such as Russia, South Africa, India etc.

Our products could match the following brand:
FMC, CAMERON, CONTROL FLOW, DKG, DRILLQUIP, CE, VECTOGREY, WEATHERFORD, WEIRSEABOARD,WOOD GROUP, WOM, STREAM FLO. EXPRO, MI SWACO, T3.

Application

The spool applies to drilling high pressure oil and gas well, the connecting of the by passage of the spool with the valves and pipes will play not only a role of blowout and choking , but also a role of connecting the BOP with the wellhead.

Rated working pressure
The rated working pressure of the drilling spool shall be the lowest rating of the end / side outlet connectors.

End and outlet connectors

End and side outlet connectors may flanged, studded, threaded, hub or other as per API 6A / API 16A.

Product range

Size : As per customer requirement
Pressure Class : 2000 PSI to 20000 PSI
Material of Construction : As per API 16A
Service Condition : General, Sour Services
