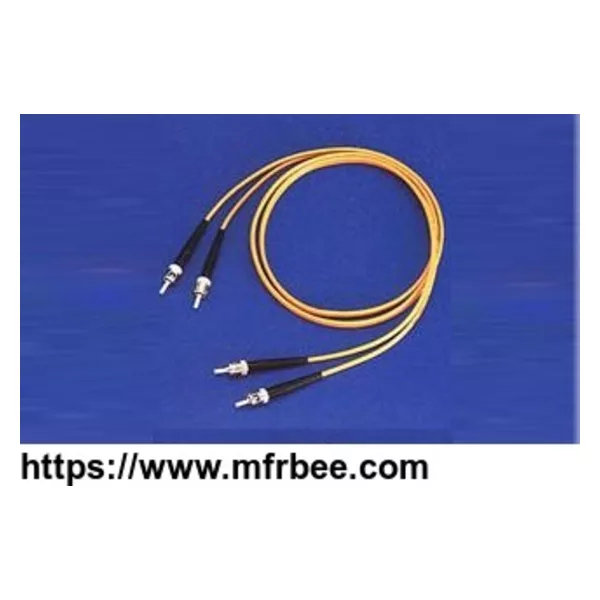

Optical Patch Cords

Summary:

About Fiber optic connector , the ITU call it as a kind of passive light component which can connect two or more fiber lines stably but not always. It can make a close connection for fiber cable and make a wonderful transmission for the light energy .

Optional types:

FC , SC , ST , LC , MTRJ , MU , SMA , FDDI , E2000 , Sc/pc

FC/PC SC/PC LC/PC

FC/APC SC/APC two cores multimode

bundle connector soft fiber cable

Features:

1 Low insertion loss and back reflection loss

2 High return loss

3 High reliability and stability

4 UL-rated plastic housing

Application:

fiber optic communication network

fiber broadband access network

CATV , fiber instruments, fiber LAN .

SPECIFICATIONS:

type	Insertion Loss NATIONAL	Insertion Loss ENTERPRISE	Insertion Loss OUR	Return Loss NATIONAL	Return Loss ENTERPRISE	Return Loss OUR
PC	? 0.3dB	? 0.2dB	? 0.1dB	? 40 dB	? 45 dB	? 45 dB
UPC	? 0.3dB	? 0.2dB	? 0.1dB	? 40 dB	? 45 dB	? 45 dB
APC	? 0.3dB	? 0.2dB	? 0.1dB	? 40 dB	? 45 dB	? 45 dB

Technical dependability data (test)

Test item	Test condition
Wet-resistance	Temperature:85&ordm:C/relative humidity 85%/14days/insertion loss ? 0.1dB
Temperature change	Temperature-40&ordm:C~+75&ordm:C/relative humidity 10%-80% /42 repetitions/14days/ insertion loss ? 0.1dB
Put in water	temperature43ºC, /PH5.5,/ 7days /insertion loss?0.1dB
vibrancy	Swing1.52mm/frequency 10Hz~55Hz,/ X?Y?Z three directions:2 hours /insertion loss?0.1dB
Load bend	0.454kgload/circle 100 insertion loss?0.1dB
load torsion	0.454kgload/10 circles/ insertion loss ?0.1dB
Tensility -resistance	0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion?0.1dB
strike	High 1.8m,three directions ,8 in each direction/insertion loss ? 0.1dB
Reference standard	Bellcore TA-NWT-001209 insertion loss ?0.1dB
