6Port SFP Media Converter |6Port Fiber Switch

Packaging
carton
Delivery
15 days

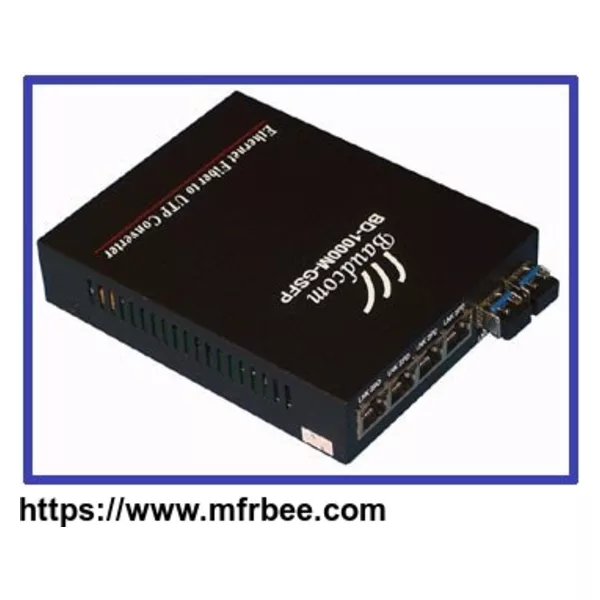

BD-1000M-TSFP Gigabit SFP media converter convert 10/100/1000M ethernet to SFP fiber. The 10/100/1000M SFP media converter can provide four 10/100/1000M UTP ports and two 1000M SFP slots.Customer can choose different 1000M SFP modules according to requirement, such as single mode or multimode,long transmission distance(1000Base-LX) or short transmission distance(1000Base-SX) or copper SFP module(1000Base-T) .
The 10/100/1000 SFP Media Converters allows flexible network configurations using SFP transceivers supplied by BAUDCOM


Features:

  • Supports 10/100/1000Base-T, 1000Base-X protocol.
  • 10M/100M/1000Mbps or automatically negotiation
  • Multi-mode and Single-mode optional easy installation
  • Supports Full/Half duplex operation
  • Supports up to 10k byte JUMBO frame.
  • Suppots Fiber Port Trunking, Increasing Fiber Channel Bandwidth and Supply Fiber Channel Redundancy.

Product parameter:
Optical interface: SC/LC
Ethernet interface: RJ-45 (coaxial, twisted pair)
Support IEEE802.3u 1000Base-TXand 1000Base-FX
Ethernet connector:10/100/1000Base-TX:Four UTP RJ45 connector
Fiber connector:1000Base-FX:Two SFP SLOTS, LC、SC connector
Cable type: non-shielded 5 class cable Cat.5UTP, can transmit 100 meters
Optical fiber category: single-mode 8.3/125, 9/125, 10/125um
multi-mode 50/125, 62.5/125
Operating Temperature:0~60℃
Storage Temperature:-20~85℃
Relative Humidity:5% to 95% non condensing
Power supply: 3A@5VDC±5%
Dimension: 140mm*110mm*40mm

FRQ:

Q: Can the media converter two fiber port suport 1+1 fiber protection?

A: The SFP fiber media converter can support fiber protection.
