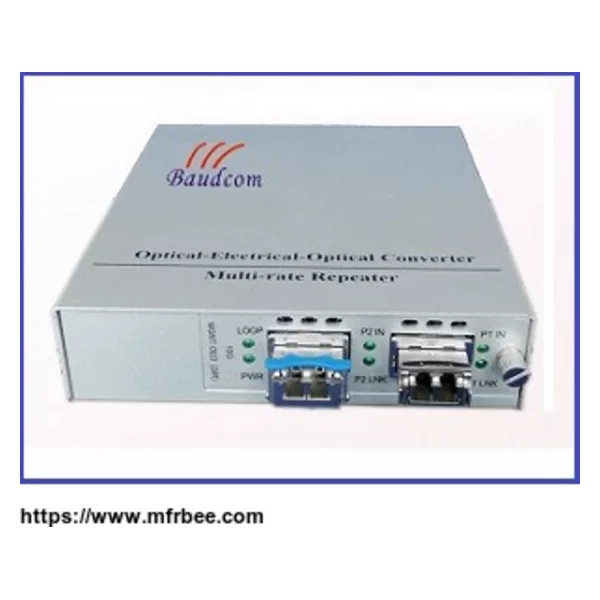

10G Fiber Converter (3R Repeater)
Product Quick Detail
- Packaging
- carton
- Delivery
- 15 days
Specifications
Description:
The 10G Fiber Converter is protocol-independent with dual XFP or SFP+ ports, the 10G fiber converter can provide conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber or multi-mode to single-strand single-mode fiber.
The device can be used as 10G fiber mode mode or fiber repeater to extend the 10G network distance
The 10G device support SDH/SONET STM-64/OC-192，10G fiber channel，10G Ethernet etc and can be applied in Telecommunication room, R&D laboratory, Data center or even 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.
The 10G fiber converter can be used as standalone device with external power or used as plug in card used in BD10Chasiss
Application:
10Gbase-LAN，10Gbase-WAN
Features：
Support 2U Rack（16 Slots） and independent use
Support network management （Web SNMP, Console）
Support in-band management
Support ITUT prescribed DWDM/CWDM wavelength
Optical signal regeneration: 3R ( Re-amplify, Reshape, and Retime the signal ) ensures that there is a quality link at 10 Gigabit speeds.
Support Jumbo Frame
Transparent Transpor and very low delay
Support DMI function for SFP+/XFP fiber module
Support Loopback test function
Support PRBS Generator and checker
Support hot plugging
Full State Led display
Easy installation
Technical Information:
| Performance Data | Technical Indexes |
| Equipment function | 3R Repeater |
| Transmission Speed | 10Gb/s（9.95Gb/s-11.35Gb/s） |
| Protocols | 10Gbase-R，10Gbase-LRM |
| Access Type | IEEE802.3ae 10G LAN/ 10G WAN |
| Interface Type | Type A: SFP+ To/From SFP+ Type B: SFP+ To/From XFP Type C: XFP To/From XFP |
| Transmission Distance | Up to SFP＋ module（Max 40Km） Up to XFP module （Max 80Km） |
| power requirement | Rack-mountable : AC 85 ～ 220V OR DC -48V Standalone: AC 220V OR -48V Power consumption: ≤4W |
| Work Environment | Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% （non-condensing） |
| Dimension | Card ： 11.5mm （W）× 78mm （D） Standalone ：156mm （W）×128mm（D）×32mm（H） |
