Features:

• supporting single fiber by double directions transmission;
• Comply with any agreement between different rates.

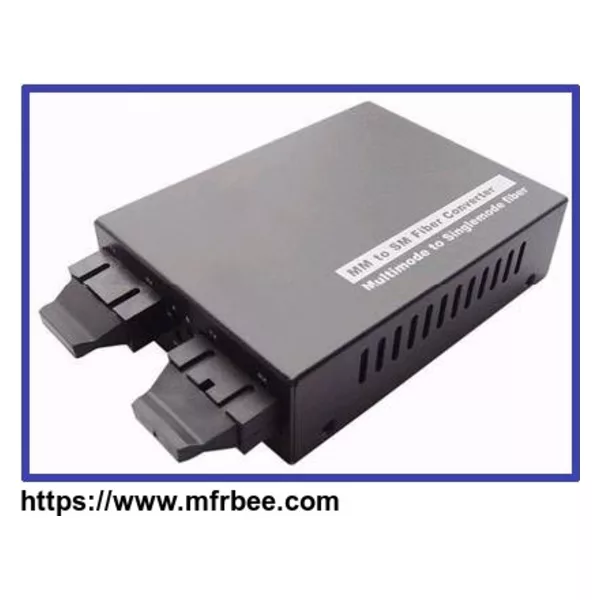

• Fulfilling medium convert between single mode fiber and multi-mode fiber or extending fiber transmission distance,
• Supporting wavelength be 850nm,1310nm or 1550nm.
• Supporting medium convert between 100M fast speed Ethernet, 1000M Ethernet, 155M~1.25G ATM, SDH or extending transmission distance.
• The longest transmission distance of multi-mode is 2KM; The longest transmission distance of single-mode is 120KM.
• As optical receiving and sending model with good optical character, electrical character, date transmits steady, and it can work for long time..
• The transmission of optical mode 155M is above 30db and optical mode 1.25G is above 25db.

Parameters:
Optical interface: SC,FC or ST (optional).
optical fiber type:
Multimode : 50/125um, 62.5/125um,100/140um, wavelength:850 or 1310nm
Single-mode: 8.3/125um,8.7/125um,9/125um,10/125um,wavelength :1310 or 1550nm
Transmission distance: multimode with 2KM, single mode up to 120KM.
Transmission rate: 10/100Mbps/155Mbps/622 Mbps/1000 Mbps/1.25Gbps/2.5Gbps
Indicator light: it indicates power supply's condition , also suggests single-fiber and multi-fiber link condition.
Power supply: 1)input 100v~260VAC
2)input 36V-72VDC , output 3W.
. Power:<3W.
. Size: 150mm(L) X200mm(w)x30mm(H)
. Work temperature :0°C~50°C
. Storage temperature: -20°C~80°C
. Humidy:5%~90% without condensing
