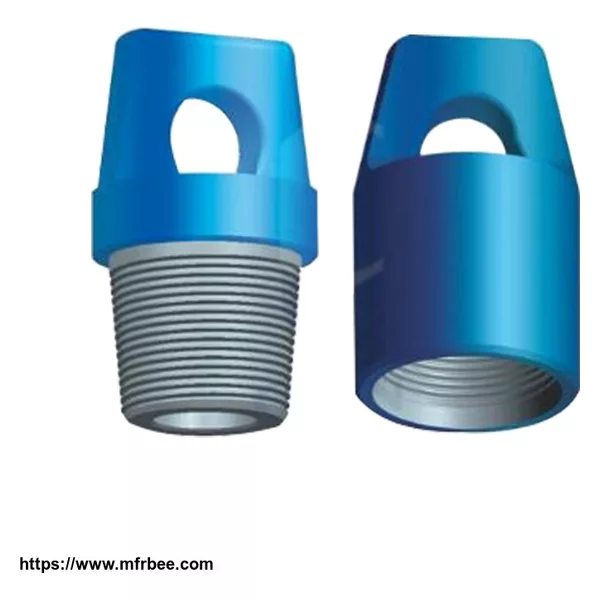

Cast Steel Lifting Bail / Drill collar lifting plug/ lifing cap
Lifting cap is a special tool for lifting of drilling tools in petroleum, natural gas, drilling engineering and geographical exploration.
Technical Specifications of lifting cap
Connection | O.D.(mm) | Length(mm) | Connection | O.D.(mm) | Length(mm) |
7 5/8 REG Pin | 210 | 290 | 7 5/8 REG Box | 230 | 290 |
6 5/8 REG Pin | 190 | 280 | 6 5/8 REG Box | 200 | 280 |
NC50 Pin | 155 | 270 | NC50 Box | 160 | 260 |
NC46 Pin | 150 | 270 | NC46 Box | 160 | 260 |
NC38 Pin | 115 | 260 | NC38 Box | 120 | 270 |
NC31 Pin | 100 | 210 | NC31 Box | 120 | 220 |
2 3/8 REG Pin | 80 | 190 | 2 3/8 REG Box | 110 | 200 |
NC26 Pin | 89 | 200 | NC26 Box | 110 | 200 |
3 1/2 REG Pin | 100 | 220 | 3 1/2 REG Box | 130 | 270 |
4 1/2 REG Pin | 145 | 260 | 4 1/2 REG Box | 160 | 260 |
2 7/8 EUE Pin | 80 | 220 | 2 7/8 EUE Box | 80 | 220 |
Description: Lifting is a special tool for lifting drilling tools in oil, gas and exploration drilling project. How to order: Sizes & connections; Please specify special requirements Product Parameters Thread O.D. (mm) Length (mm) Thread O.D. (mm) Length (mm) 7 5/8 REG Pin Φ210 ...
Lifting sub is the special tools for lifting of the drill tools in petroleum, natural gas industry and geologic exploration. There\'re two types for drill tool lifting sub in structure: type A or B. Type A lift sub is with 18 degree shoulder, and type B is with 90 degree ...
1. Product Description: Lifting sub is the special tools for lifting of the drill tools in petroleum, natural gas industry and geologic exploration. There are two types for drill tool lifting sub in structure: type A or B. Type A lift sub is with 18 degree shoulder, and type B ...
