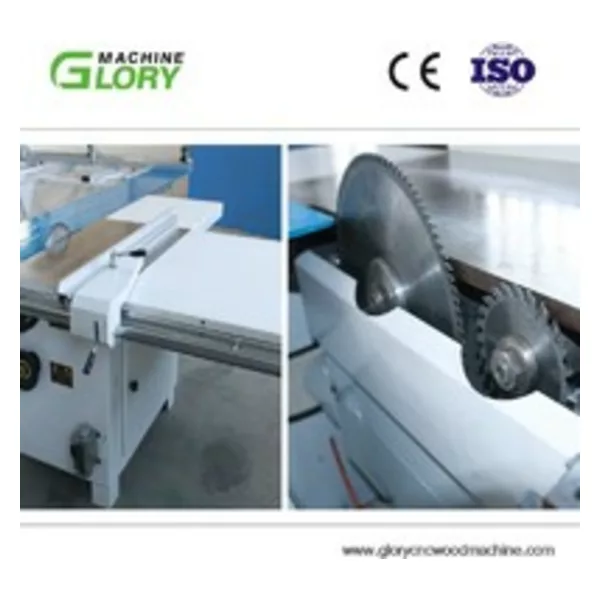

sliding table saw

Minimum Order: 1

Packaging: Plywood Cottom

Delivery: 15 Days

Dimension of sliding table	3200×375mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Saw blade diameter	Φ315
Height of cut	90mm
Diameter of guide shaft spindle	55mm
Speed of main saw spindle	4000/6000rpm
Main spindle diameter	φ30mm
Tilting saw blade	0-45°
Main motor	5.5
Scoring saw blade diameter	φ120mm
Speed of scoring saw blade	8000r/min
Scoring spindle diameter	φ20mm
Scoring motor	1.1kw
Net weight	685kg
weight	806kg
Overall dimensions	3250×3150×900mm

Country: China (Mainland)
Business Type: woodworking machinery exporter
Market:west euro \north america\asia
Founded Year:2008
Address:
Contact:Anthony Zhang
