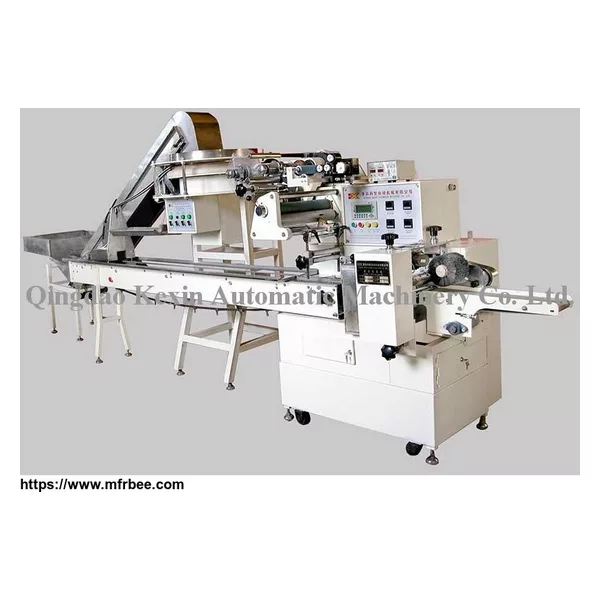

Automatic packaging machine with a syringe dialysis note

Syringe fully automatic pillow wrapping machine

(Dialysis paper wrapping)

Application:

One-time used Syringe:1、2.5、5、10、20、30、50ml

Sterile EO equipments

Main features:

1、Sealing form: Three side seal, tight and firm, packing bag easily prints on both sides.

2、Using a number of proprietary technologies: Cover the function of the dialysis paper, compound film, punching holes, forming bags, vertical and horizontal seal, cutting off and printing to match, one person operating 50,000-60,000branches per day.

3、Paper and film sticking device: Automatic opening-closing, no manual, paper, and film printing position can be adjusted individually linkage adjustment. The path runs short, simple adjustments, convenience and savings packaging materials, stable and reliabl

4、Automatic feeding system: Automatic elevate, marshal and feed after Putting Syringe into hopper and warn without Syringe in hopper. Automatic reject the hood of needles and fallen off Syringe needles, quickly supplying, zero empty bags. Connect feeding speed with wrapping machine′s.

5、Packaging machine control adopting modular design (no homemade PCB), digital set by HMI, PLC and univertor (or servo),intelligent temperature Control machines running. No transmission box, stable and credible running, lower noise, high precision.

6、End sealer is easy to adjust, tight and stable, long time running without shifting.

7、Vertical seal has traction - oriented wheel (not heating), traction - oriented angle can be adjusted in operation, making Bag stability and control in molding closure width, to save film, to save film (the Min. film width of 5 ml syringe is 95mm).

Optional devices:

Hot roll date batch printer.

Note:

1、The voltage satisfies according to the different nation and the region.

2、Some parameter and feature will be changed according to the different wrapping requirements.
