MGC Narrow Gauge Tramcar
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- discuss personally
Specifications
Introduction Of MGC Narrow Gauge Tramcar
We have various type of tramcars, which have different capacity. All of them are approved MA certificate with quality and safety.
Parameters Of MGC Narrow Gauge Tramcar
| Model | Capacity (m3) | Payload (t) | Track(mm) | Wheelbase(mm) | Wheel dia(mm) | Loading height(mm) | Loading(KN) | Overall weight(kg) | Overal dimesion(mm) | Spring damper |
| MGC1.1-6A | 1.1 | 1.8 | 600 | 550 | 300 | 320 | 60 | ≤610 | 2000*880*1150 | single |
| MGC1.1-6B | 1.1 | 1.8 | 600 | 550 | 300 | 320 | 60 | ≤610 | 2000*880*1150 | two |
| MGC1.7-6A | 1.7 | 2.7 | 600 | 750 | 300 | 320 | 60 | ≤720 | 2400*1050*1200 | single |
| MGC17-6B | 1.7 | 2.7 | 600 | 750 | 300 | 320 | 60 | ≤760 | 2400*1050*1200 | two |
| MGC1.7-9D | 1.7 | 2.7 | 900 | 600 | 350 | 320 | 60 | ≤970 | 2100*1150*1300 | two |
| MGC3.3-9 | 3.3 | 5.3 | 900 | 1100 | 350 | 320 | 60 | ≤1320 | 3450*1320*1300 | two |

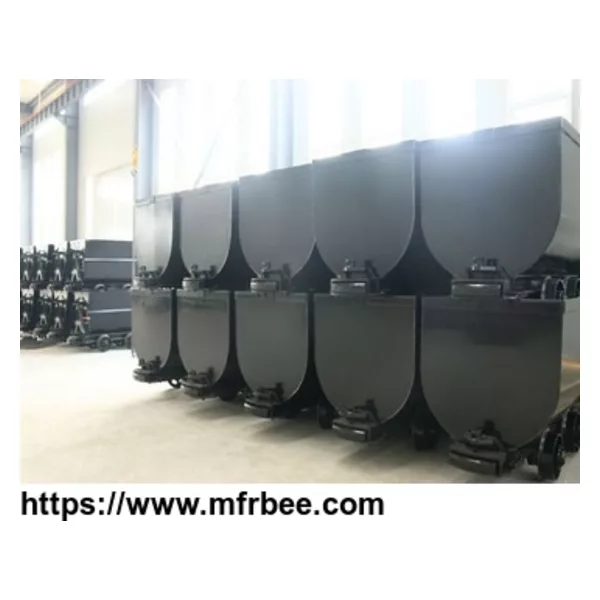

Pictures Of MGC Narrow Gauge Tramcar
