250W Solar Module Solar Cell Solar Panel

Specification:

Model number	RL-FM130
Solar Cell	Monocrystalline
Maximum power (Pmax)	250W
Maximum power voltage (Vmp)	18.2V
Maximum power current (lmp)	13.74A
Open circuit voltage (Voc)	22.3V
Short circuit current (lsc)	14.62A
Max system voltage	1,000VDC
Max charging current	15A
Operating temperature	-40℃ to +85℃
Product application	Class A
Weight	18.73kg
Dimensions (mm)	1118*700*68

Note: all prices are excluding tax and shipping. All parameters may differ between ±3%—±5%. The price is for FOB Zhongshan Port and the offer is valid for 15 days. Warranty for two years.

Operation Instruction

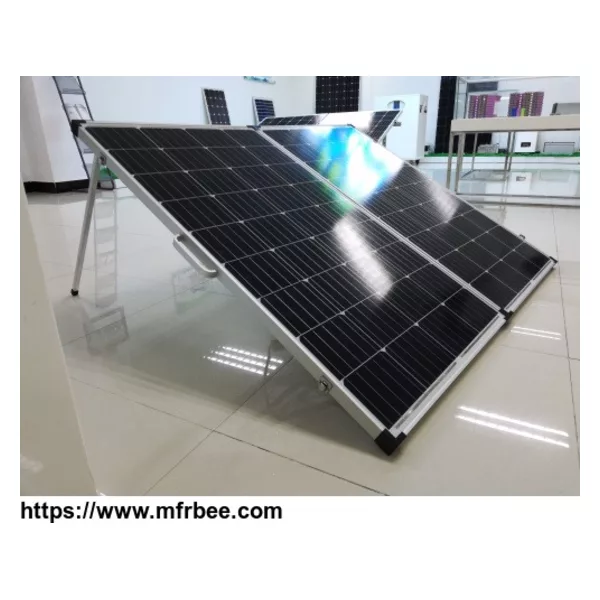

250W folding solar panel will perform at its peak when it faces directly towards the sun.

ADJUSTABLE SUPPORT LEGS

l When the locking handle is at 90 degree. The support legs are loose and the angle of the solar panel can be adjusted.

l When the locking handle is at 45 degree. The support legs are locked and cannot move.

CONNECTING YOUR SOLAR PANEL

l Now that the panel is setup facing directly towards the sun. Proceed to connect the positive and negative clips to you battery.

l Always connect the battery clips to the battery first, then insert the solar panel Anderson plug into the battery wire Anderson plug. You controller will then light up to show that it is working.

DISCONNECTING & STORING YOUR SOLAR PANEL

l Disconnect the Anderson plug off the battery clips first and then proceed to take the battery clips off the battery.

l Roll the 5m extended wire neatly into the storage clips behind the solar panel.NOTE: MAKE SURE NOT TO TWIST OR KINK THE WIRING IN AN UNNATURAL WAY.

l NEVER STORE YOUR SOLAR PANEL WITH THE BATTERY WIRE CONNECTED TO THE PANEL.

l PLACE THE BATTERY WIRE SEPERATELY IN THE FRONT POCKET OF THE CARRY BAG.

TIP:For optimal performance through-out the day, set the panel to approximately 30° from the ground. Anywhere between 10° and 40° will gain the best power absorption across the course of the day.
