MGC3.3-9 Fixed Mine Wagon

Minimum Order
1
Packaging
N/A
Delivery
discuss personally

Introduction Of MGC3.3-9 Fixed Mine Wagon

Mechanical loading demands the largest possible car consistent with haulage and loading conditions so as to reduce the number of car changes and time delay. When the car must be designed for the colliery, shaft size may limit the car length and width. When a new mine is opened, the car size is often chosen arbitrarily, subject to physical conditions as far as can be determined.

Parameters Of MGC3.3-9 Fixed Mine Wagon

1.Easy replacement of wear and spare parts;

2.Simplified state of the art mainframe and easy to operate;

3.Mass and section thickness optimised;

4.High stress area welds eliminated;

5.Made by high quality steel;

6.Low operational costs.

Technical Parameters

Model Volume(m3) Theoretical
Capacity(T) Max. Load(T) Gauge(mm) Wheel Base(mm) Wheel Diameter (mm) Traction(KN) Traction Height(mm) Overall Size(LxWxH) Weight(≤kg)
MGC1.7-6 1.7 1.5 2.7 600 750 300 60 320 2400*1050*1200 720
MGC1.7-9 1.7 1.5 2.7 900 600 350 60 320 2100*1150*1300 970
MGC1.1-6 1.1 1 1.8 600 550 300 60 320 2000*880*1150 610
MGC3.3-9 3.3 3 5.3 900 1100 350 60 320 3450*1320*1300 1320

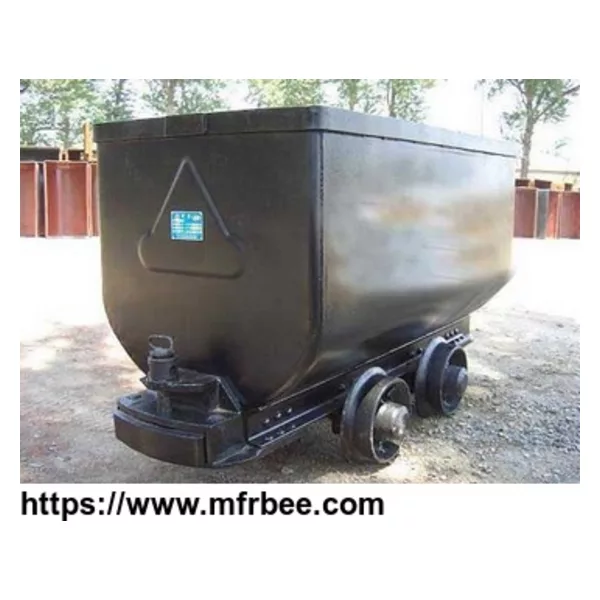

Pictures Of MGC3.3-9 Fixed Mine Wagon
