40 Watt Solar LED Street Light Completed System

Features

1. Comes with solar panel, street light and charge controller, you need to buy extra electric cable connectors, 12v lithium battery, a pole and mounting plates to make this system completed. Two solar panels should be wired in parallel for 12v battery charging.
2. 15A charge controller is 12v/24v autodetect, you need to connect it to 12v battery firstly, then connect solar panels and street light with the controller.
3. 100 Watt high-efficiency poly solar panels convert solar energy into electricity, the battery will store the electric power and supply energy to the light during the night.
4. 40 Watt street light with 80 LEDs, provides higher lumens with lower energy consumption. Excellent as an area light, parking lot light, patio light or yard light.
5. The operation costs are minimized as it’s independent of the utility grid; Required much less maintenance compared to conventional street lights; Risk of accidents is minimized since external wires are eliminated; A nonpolluting source of electricity.

Specification

100W Poly Solar Panel

Related power: 100W
Maximum/Peak Voltage(Vmp): 21.6V
Open Circuit Voltage(Voc): 18V
Maximum/Peak Current(Imp): 6.11A
Short circuit current (Isc): 5.55A
Output Tolerance: ±3%
Temperate coefficient of Isc: (0.10+/- 0.01) %/℃
Temperate coefficient of Voc: – (0.38 +/-0.01) %/℃
Temperate coefficient of power Voc: -0.47%/℃
Temperature range: -40℃~+80℃
Frame: Heavy duty aluminum
Guarantee of power: 90% within 10 years, 80% within 25 years
Defective Warranty:5 year warranty against material and workmanship
Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage: 12V
Size: 39.3*26.2*1.38in (996*665*35mm)

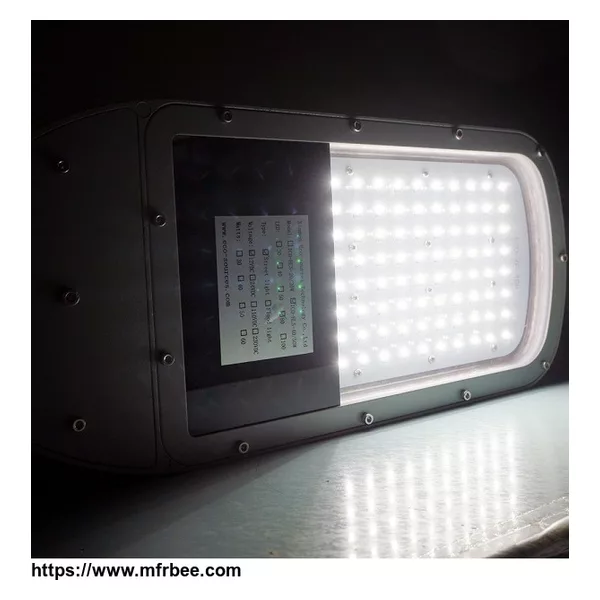

40W 12V Solar Street Light

LED Housing: aluminum, tempered glass
LED quantity: 80pcs*0.5w
LED lumen (Tj = 25℃): 4800lm
Color temperature: 8000K
Operating temperature: -30℃~60℃
Lifespan: > 50,000Hrs
Lighting zone (height=8meters): 25m*10m
LED Driver Voltage: 12VDC
Waterproof class: IP65
Size: 16.7* 7.6*2.8in (425*193*70mm)
Weight: 4.85lbs (2.2kg)

15A Solar Charge Controller

Normal output: 12V/24V (automatic)
Max charge/Load current: 15A
Max Solar Panel: 270W/540W
Timer/Light sensor: adjustable
Size: 4.4*2.36*1.32in
Weight: 3.9 ounces (110g)
