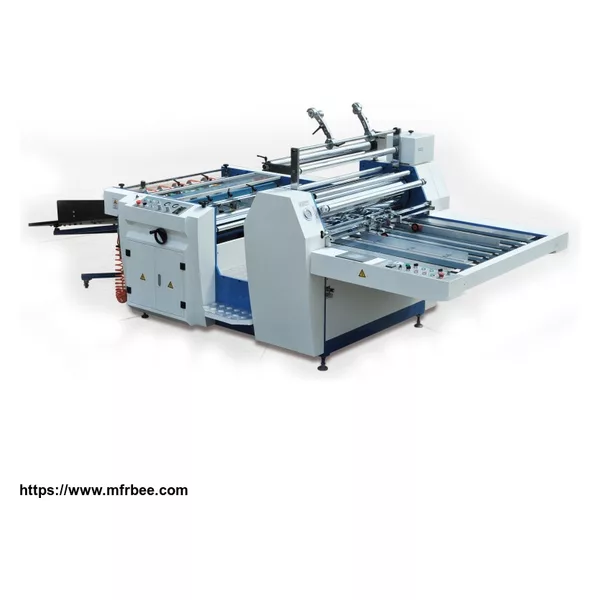

Improved Semi-auto Laminating Equipment MODEL YFMB-L -iseef.com
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 20-35 Days
Specifications
Configuration:
- SCHNEIDER frequency inverter equipped for infinite speed variation ensures speed adjustment much more convenient and efficient, and makes the machine run stably and quietly.
- Enlarged chromed heating roller is mounted with built-in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.
- SCHNEIDER PLC system realizes automatic paper separation, breakdown alert for self-protection etc.
- Pneumatic film unwinding system positions film roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.
- Three separating systems are available for different specifications of sheets and film: 1) Flail cutting system 2) serrated perforating wheels 3) carborundum grinding wheel to laminated film.
- Perfected tracking adjusting system makes traction adjustment more convenient and efficient.
- Anti-curvature device and vibrating paper collector ensure paper collection more regular and convenient.
- Slip structure with aisle which convenient to maintenance.
- The vibration collecting table.
- Optional device: electromagnetic heating system with surcharge.
Main technical parameter:
| Model: | YFMB-720L | YFMB-920L | YFMB-1100L |
| Max. paper width: | 680mm | 880mm | 1040mm |
| Paper thickness: | 100-500gsm | 100-500gsm | 100-500gsm |
| Laminating speed: | 0-30m/min | 0-30m/min | 0-30m/min |
| Gross power: | 20kw | 22kw | 24kw |
| Total weight: | 1700kgs | 1900kgs | 2100kgs |
| Overall dimension: | 4600*1560*1500mm | 4600*1760*1500mm | 4600*1960*1500mm |
