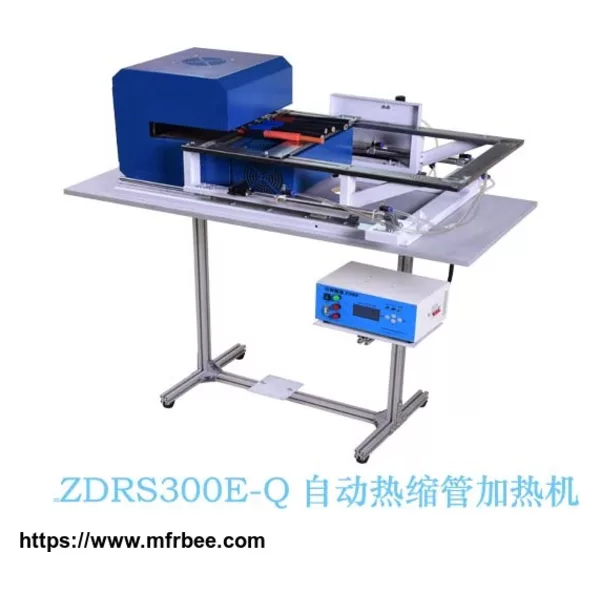

ZDRS300E-Q automatic heat shrinkable tube heating machine, wire harness automatic inlet and outlet,suitable for heating shrinkage of heat shrinkable tubes in wire harness processing enterprises, adjusting temperature according to the requirements of the production process,the working state is displayed by liquid crystal display.Heating time and heating temperature are set by the user. The width of heating zone is adjustable.Contraction time is short,can heat shrinkable tubes for any length, can work continuously for 24 hourswithout interruption,Power is adjustable,there is anomni-directional reflective thermal material in it, so that the heat shrink pipe is heated evenly.
Characteristics:
Equipment composition
Heating system + control system +automatic wiring harness support system
The working state is displayed by liquid crystal display
The working temperature, heating time and heating temperature are set at will.
The heating time, heating temperature and stopping time of the heat shrinkable pipe can be set freely and stored in memory according to the user's requirements.
The width of heating zone is adjustable
The width of the heating zone can be adjusted by the user according to the size of the heat shrinkable tube, save energy as much as possible and ensure the wire do not be hurt.
Automatic harness bracket
Wire harness bracket adopts pneumatic mode, automatically entering and heating zone, in and out, heating, changing products, time can be set freely.
Heat insulation design of heating zone
The double shell design of heating area makes the inside and outside temperature separate, that is to save energy and protect the working environment.
Classification | Item | Parameter |
Size | Overall machine size(L×W×H) | 400×340×350mm |
Control power(L×W×H) | 200×150×200mm | |
Heating area(L×W) | 300×200mm | |
Heating width | 200mm | |
Maximum wire beam heating length | 160mm | |
Maximum wire beam heating diameter | 25mm | |
Wiring harness support | Material | Stainless steel |
Maximum heating quantity | 1-16 roots (according to wire diameter) | |
Transport mode | Automatic parallel movement | |
Heating pipe | Heating pipe name | Infrared radiant tube |
Heating pipe power | 1800W | |
Energy needs | Power demand | 220V |
Power | 1860W | |
Air source demand | >1 KPa | |
Security | Safety grade | Earth wire |
