Steel cord conveyor belts ensure maximum conveying performance, even under grueling stress conditions. Their robust design guarantees high tensile strength at maximum conveying capacity as well as excellent impact resistance. Wear-resistant, rot and corrosion-resistant, resistant to chemicals and thermally stable, our conveyor belts provide long years of service while requiring little maintenance.
Huacheng conveyor belt are primarily used in the following industries:
Chemical industry
Coal-fired power stations
Iron and steel industry
Quarries
Recycling industry
Sand and gravel industry
Metallurgy
Agriculture
Cargo terminal and port
Architecture field
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | ||
DIN 22102 | Mpa | % | mm3 | N/mm | N/mm | |
(<=1.5mm) | (>1.5mm) | |||||
DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | |
DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | |
DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | |
DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | |
Standards | Cover Rubber | Adhesion | ||||
Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
AS 1332 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
(<=1.9mm) | (>1.9mm) | |||||
AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
Standards | Cover Rubber | Adhesion | ||||
Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
RMA | Mpa | % | mm3 | N/mm | N/mm | N/mm |
(<=1.6mm) | (>1.6mm) | |||||
RMA-I | 17 | 400 | 3 | 4.4 | 4 | |
RMA-II | 14 | 400 | 3 | 4.4 | 4 | |
Standards | Cover Rubber | Adhesion | ||||
Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
SANS 1173 | Mpa | % | mm3 | N/mm | N/mm | |
A | 18 | 400 | 70 | 5 | 7 | |
C | 20 | 400 | 150 | 5 | 7 | |
M | 25 | 450 | 120 | 5 | 7 | |
N | 17 | 400 | 150 | 5 | 7 |

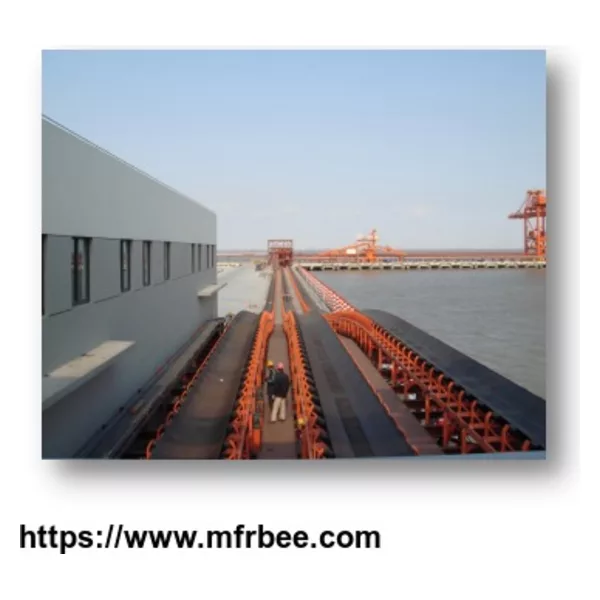

Heat Resistant Conveyor Belt The heat-resisting conveyer belt is used for transporting high-temperature supplies , ore , hot coke , cement grog , hot casting , etc. such as fritting mainly. According to heat-resisting to bring damage even is it transport main behavior and ...
Place of Origin:Hebei, China (Mainland) Brand Name:LANJIAN Model Number:Customized, EP/NN 80~630 Product Name:180 degree Heat Resistant Rubber Nylon fabric Conveyor Belt For Cement PlantColor:Black Standard:ISO9001 Material:CC, EP, NN Tensile Strength:6mpa-25mpa Width:300mm - ...
