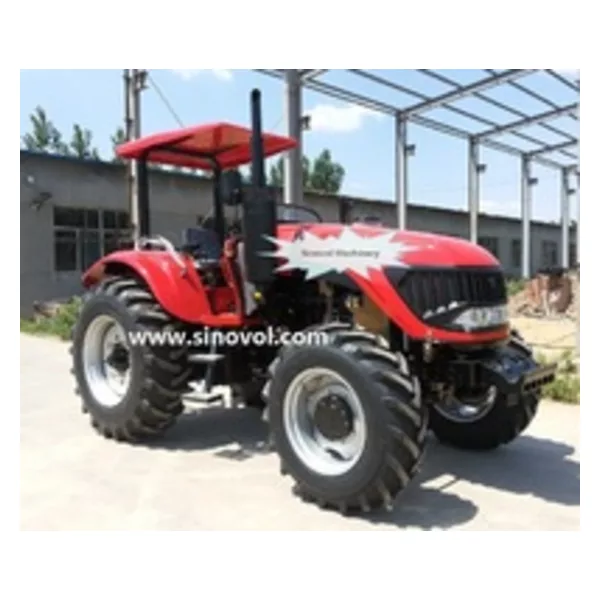

Tractors power is from 90hp to 110hp,2WD and 4WD are both ok.This tractor can choose to fit the ROPS,cabin,rear remote hydraulic,etc.It is with four cylinder diesel engine,can fit many kinds of implements.
Tractor Model | SN-904 | SN-954 | SN-1004 | SN-1104 | SN-900 | SN-950 | SN-1000 | SN-1100 |
Power | 90hp | 95hp | 100hp | 110hp | 90hp | 95hp | 100hp | 110hp |
Drive type | 4x4 4WD | 4x2 2WD | ||||||
Engine | ||||||||
Engine model | 4MC-T65A | LRC4108ZT | 4108 | 4108 | 4MC-T65A | LRC4108ZT | 4108 | 4108 |
Capacity of fuel tank(L) |
150 | |||||||
Rated speed (r/min) | 2300 | |||||||
Engine power (kw) | 66.2 | 69.8 | 73.5 | 80.9 | 66.2 | 69.8 | 73.5 | 80.9 |
Lowest fuel consumption (g/kw·h) |
≤242 | |||||||
Transmission | ||||||||
Clutch |
Dry,dual-stage type |
|||||||
PTO Speed(rpm) | 540/1000 or 760/1000(optional) | |||||||
Gearshift | 8F+4R/16F+8R(optional)/8F+8R(optional) | |||||||
Hydraulic system | ||||||||
Hydraulic output valve | 2-Way (optional) | |||||||
Three point linkage | ||||||||
Category of 3-point link |
Rear,Cagetory II | |||||||
Lifting capacity(at point of 610mm)KN |
>16 | |||||||
Technical parameter | ||||||||
Dimension LxWxH mm | 4593x2050x2810 | |||||||
Wheel base(mm) | 2195 | 2362 | ||||||
Track base(mm) front wheel | 1610 | 1485 | ||||||
Track base(mm) rear wheel | 1620-2020(usual 1620) | |||||||
The smallest clearance(mm) | 379 | 476 | ||||||
Front tyre | 11.2-24 | 6.5-20 / 7.5-16(optional) | ||||||
Rear tyre | 16.9-34/18.4-30(optional) |
