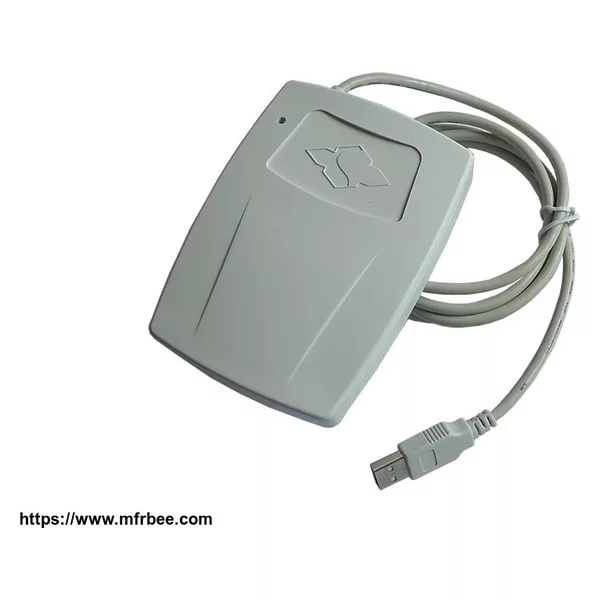

13.56MHz RFID Desktop Reader-MR811

FOB Price
USD $21.12 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
carton boxes
Delivery
3 Days
MR811 series desktop contactless IC card reader/writer is based on NXP series RF chip with high performance ARM7 MCU. The communication is according to USB PC/SC standard. The reader fully supports the IC card according to ISO14443 standard, especially completely supports ISO14443-4 contactless CPU card.
The reader builds in 2 SAM slots, and fully supports SAM according to ISO7816.
  • Main Characteristics
  • • True USB PC/SC interface, compatible with many PC/SC readers in the market
  • • High speed ARM7 MCU and advantage firmware provide very high card process speed
  • • RF interface and protocol process with EMV2010 LEVEL 1 certification ability
  • Technical parameters
  • • PCD: NXP MF RC531
  • • Working frequency: 13.56MHz
  • • RF standard: ISO14443A, ISO14443B
  • • Operating distance: 100mm (MIFARE One, typical)
  • • SAM slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 230400bps)
  • • Display: 1 tri-color LED
  • • Buzzer: Build in
  • • Data FLASH: 4 Mbytes
  • • Interface: USB PC/SC standard
  • • Power supply: DC5V ± 10%
  • • Power consumption: 0.9W
  • • Dimension: 123mm * 88mm * 25mm
  • • Weight: About 100g
  • • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
  • • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
  • • PC software: PCSC Communication Tool
  • • SDK: Base on Windows, free
  • • Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
  • • ISP: Terms
  • • RoHS: Compliant
  • If you want to get more information about 13.56MHz RFID Desktop Reader or Embedded Reader Modules, welcome contact with me in any time. E: yinghaiyan at jinmuyu dot com or jinmuyu1987 at gmail dot com
    Whats app: 0086 13120161037
    web site: www dot jinmuyu dot com
