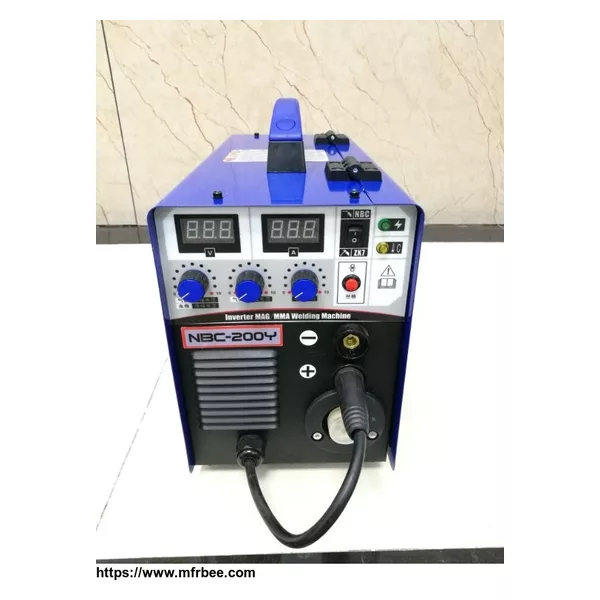

MIG200 CO2 Welding Equipment
Product Quick Detail
- Place Of Origin
- 中国
- FOB Price
- USD $140.00 / Piece
- Minimum Order
- 50
- Packaging
- 1pcs 1 paper box
- Delivery
- 30 Days
Specifications
Stable IGBT inverter technology
Single MIG/MAG welding function
High reliability and excellent welding performance
Easy to operate, economical and practical
Suitable for welding mild steel and alloy steel
Minimal spatter, deep penetration, good welding seam.
| Input Voltage(V) | AC220V±15% |
| Frequency(HZ) | 50/60 |
| Rated Input Current(A) | 37.4 |
| Output Current Range(A) | 40-200 |
| Rated Output Voltage(V) | 16.5-24 |
| Duty Cycle(%) | 60 |
| Power Factor | 0.73 |
| Efficiency(%) | 80 |
| Type of Wire Feeder | Built-in |
| Wire-feeding Speed(mm) | 2.5-13 |
| Housing Protection Grade | IP21 |
| Diameter of Wire | 0.8/1.0 |
| Insulation Grade | F |
| Plate Thickness(mm) | 0.8+ |
| Net Weight(KG) | 21 |
| Dimension(mm) | 468*245*478 |
