Technical Specifications
|
|
Model NO.
|

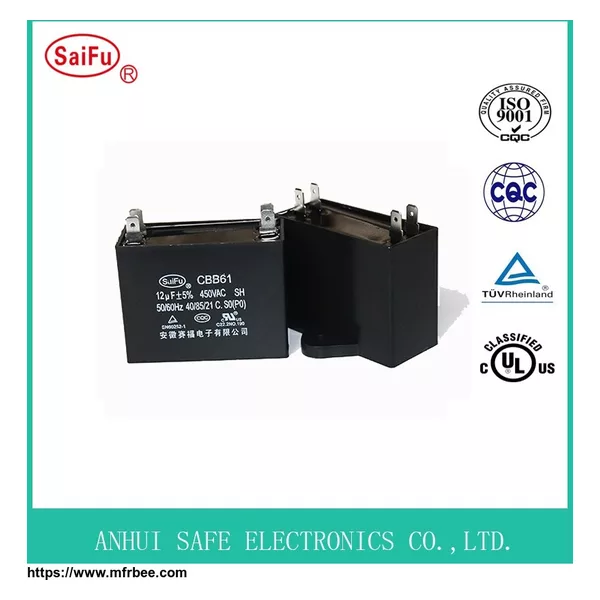

CBB61 Capacitor
|
|
Type:
|
Fan Capacitor with Pin Series
|
|
Structure
|
Single Capacitor
|
|
Manufacturing Material
|
Polypropylene
|
|
Electrolyte
|
Polypropylene Film
|
|
Reference Standards
|
GB/T 3667.1(IEC60252-1)
|
|
Climatic category
|
40/70/21,40/85/21
|
|
Class of operation
|
Class B(10000h) Class C(3000h)
|
|
Class of safety production
|
S0
|
|
Voltage range
|
220VAC 370VAC 440VAC 450VAC
|
|
Capacitance range
|
1~35μF
|
|
Capacitance tolerance
|
±5%,±10%,±15%
|
|
Dissipation factor
|
20*10-4(100Hz,20ºC)
|
|
Test voltage terminal to terminal UTT
|
2 Un for 2 seconds
|
|
Test voltage terminal to case UTC
|
(2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds
|
|
Insulation Resistance
|
≥3000s(100Hz,20ºC,1min)
|
|
Altitude
|
≤2000m
|
|
Remain voltage when put into operation
|
No more than 10% of rated voltage
|
|
Maximum allowed voltage
|
No more than 1.1 times rated voltage
|
|
Maximum allowed current
|
No more than 1.3 times rated current
|
|
Package Type
|
Export Standard Carton for CBB61 Capacitor
|
|
Production Capacity
|
500,000PCS/Month
|
|
MOQ
|
1 PCS
|
|
Size
|
Available
|
