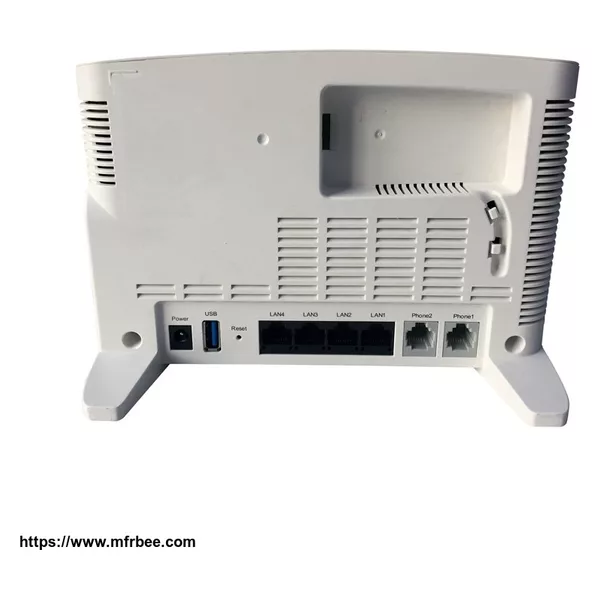

GPON ONU with 4GE+2Ports+WIFI
Product Quick Detail
- FOB Price
- USD $30.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 1PC/SET
- Delivery
- 15 Days
Specifications
GPON ONU with 4GE+2Ports+WIFI
Integrated with powerful interoperability and low cost, 4GE+2POTS+WIFI provides triple-play services to the subscribers in FTTX application.
Equipped with 2.5G Downstream and 1.25G Upstream GPON interface compliant with ITU-T G.984 standard, GN2000
Equipped with 2.5G Downstream and 1.25G Upstream GPON interface compliant with ITU-T G.984 standard, GN2000
Hardware Specification
| Specification | 4GE+2POTS+WIFI | |
| PON Interface | Rate |
Upstream：1.244Gbps Downstream：2.488Gbps |
| Interface standard | Class B+ | |
| Optical output rate | +0.5~+5dBm | |
| Receiving sensitivity | -27dBm | |
| ReceivingSaturability | -8dBm | |
| Service Interface | PON interface | 1 |
| Data interface | 4*10/100/1000Base-T | |
| POTS interface | 2 | |
| WIFI interface | Compliant with 802.11n standard, maximum support the rate of300Mbps | |
| Dimension | 195mm(L)*188mm(W)*33mm(H) | |
| Weight | 210g | |
| Power Supply | External power adapter, 12V/1A | |
| Power Consumption | <13.9W | |
| Working Environment | Temperature | 5ºC to +45º C |
| Humidity | 10% to 95% (no condensing) |
