spring cone crusher maintenance

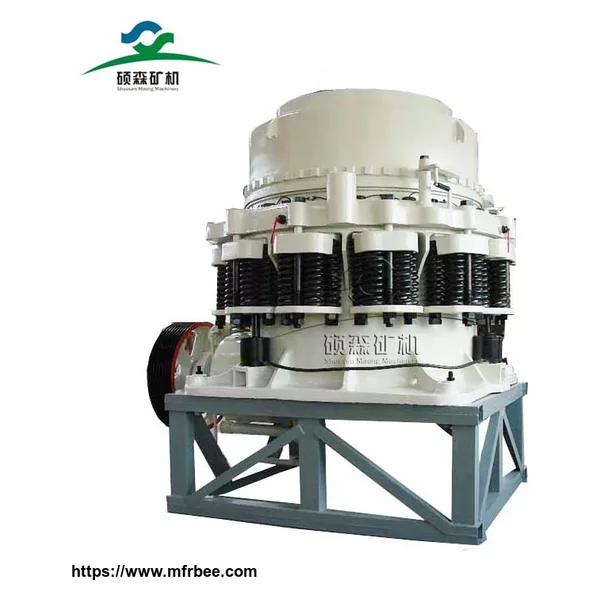

spring cone crusher

(1) When the cone crusher is running, note the followings:

(2) The output is relating to feeding type, ore size, discharging size, physical parameter of ores, moisture and so on. Therefore, great changes are in the scope of the production output.

(3) Adjustment of discharging gate.

(5) Replacement of bowl liner

(6) Replacement of crushing cavity

(7) Bevel gear

As wearing so the disk has worn away, this will influence the bevel gear space. The overall thickness of disk should be checked two times every year.

(8) Bowl type shaft

(9) The bushing and the stander adopt transition fit. When replacing bushing, the size refers to the actual size of the stander hole.

(10) The kirksite poured into the middle of shaft housing and excentric sleeve is for avoiding the rotating motion of the shaft housing. The kirksite should full of gaps. The shaft housing may becomes deformed due to heat pouring of kirksite, so once new shaft housing has installed well, check the size of D1d1, D2d2, B and so on. Shown as fig 14.

(11) The gap of excentric sleeve and stander bushing should be in accord with the gap of principle axis cone shaped spot and shaft housing. A=2-2.35mm; b=2.8-3.04mm; c=9.5-9.8mm. Shown as fig 15.

(12) Water seal and dustproof device
