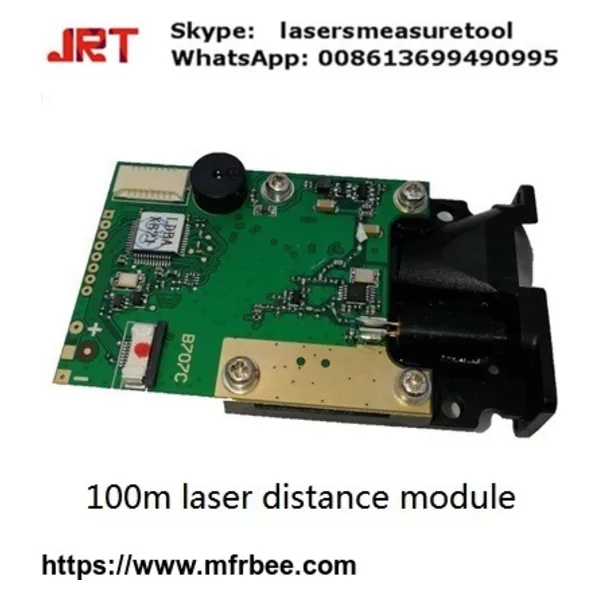

-10~50 degree 150m Laser Distance Rangefinder Module with USB
We are the factory of laser measure modules. Support OEM your own laser measuring tools. Our laser rangefinder sensor can be up to 40m,60m,100m,120m,150m, with RXTX/USB/RS232/RS485 data output.Mainly
product: laser distance module, laser distance meter, laser tape measure etc.Welcome to inquiry for more details. My best,Yours Jane
Specifications
Product Model:
|
M605B
|
Accuracy:
|
±1 mm (0.04 inch)
|
Measuring Unit:
|
meter/inch/feet
|
Measuring Range (without Reflection) :
|
0.03-150m
|
Measuring Time:
|
0.1~3 seconds
|
Laser Class:
|
Class II
|
Laser Type:
|
635nm, <1mW
|
Size:
|
75x40x18mm
|
Weight:
|
About 21g
|
Voltage :
|
DC2.5~3V
|
Operating Temperature:
|
0-40 ºC (32-104 ºF )
|
Storage Temperature:
|
-25~60 ºC (-13~140 ºF)
|
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. Operating temperature -10 ºC~50 ºC can be customized.
4. For the data output, serial port, USB, RS232, RS485, Bluetooth is optional
