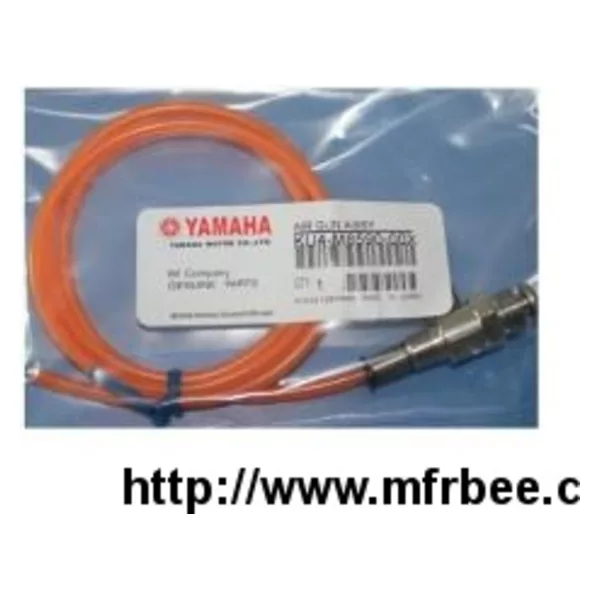

YAMAHA AIR GUN ASSY KU4-M8590-00X

1 KGA-M1101-00X BASE 1
2 KGA-M1120-00X PLATE 10 1 CONNECTER
2-1 KGA-M1120-01X PLATE 10(CONNECTOR) 1 2001/11/5 M1X0008 NG
3 KV7-M1112-00X PLATE 2 1
4 KGA-M1113-00X PLATE 3 1 VALVE
5 KV7-M1114-00X PLATE 4 1 I/O
6 KV7-M1115-00X PLATE 5 1 AIR
7 KM0-M1141-00X MANUFOLD 2
8 KG7-M1342-01X BRACKET F/D 1
9 KG7-M8501-00X AIR FILTER 1
10 KV8-M8502-00X MIST FILTER 1 MF400-A
11 KV8-M8503-00X MODULE ADAPTER 1
12 KG7-M8504-00X REGULATOR 1 R300-03
13 KG7-M8512-00X JOINT 1
14 KG7-M8513-00X JOINT 1
15 KM0-M8582-00X VALVE 1 040M12AJ1-7
16 KG7-M8596-00X PRESSURE GAUGE 1
17 KV7-M1118-00X PLATE 8 1
18 KV7-M1125-00X PLATE CLAMP 1
19 KG2-M1128-00X BRACKET SPEED CONT. 1
20 KM0-M1142-00X CASTER 6 (OPTION)
21
KGA-M1151-00X PLATE,SIDE 1 1 for STD 2003/8/21 M380030
KGA-M1151-10X PLATE,SIDE 1 1 for UPS 2003/8/21 M380030
22
KM0-M1152-01X PLATE SIDE 2 1 for STD 2003/8/21 M380030
for UPS 2003/8/21 M380030
23 KM0-M1153-01X PLATE SIDE 3 1 2003/8/21 M380030
24 KM0-M1154-01X PLATE BOTOM 1 2
25 $SL12-03 JOINT 4
26 $SLY10-03 JOINT 1
27
28 $TL4-02 JOINT 1
29 $UEDW10-8 JOINT 1
30 $U D10-8 JOINT 1
31 $SL8-01 JOINT 1
32 $KM-11 MUFFLER 1
33 $TSS4-01 JOINT 12
34 $TSH8-01 JOINT 2
35 KGA-M1180-00X LEVELING BOLT ASSY. 4
36 KHA-M1180-00X LEVELING BOLT ASSY. 2
37 K40-M8598-00X PLUG 1 2
38 91C00-03210 SPACER 28 M3X10L
38-1 90563-03J100 SPACER BOLT 28 2001/9/1 M180147 OK
39 KH5-M8501-00X EXHAUST VALVE 1
40 $KM-23 MUFFLER 1
41 KV7-M1154-00X BRKT. POWER SUPPLY 1
42 KV7-M1161-00X PLATE 11 1 TRANS
43 KV7-M1113-10X PLATE 3-1 1 REG
43-1 KV7-M1113-11X PLATE 3-1(REGULATOR) 1 2003/8/1 M370176 OK
44 KV7-M1153-00X PLATE SIDE 3 1
45 KV7-M111A-00X BRACKET. GAUGE 1
46 $UED8-4 JOINT 1
47 $UP8 JOINT 1
48 $UP4 JOINT 3
49 $UY8 JOINT 3
50 KGA-M112B-00X PLATE, PRINTER 1
50-1 Delete 2002/10/7 M1X0008
51 KGA-M4126-00X GUIDE RAIL L ASSY. 1
51-1 KGA-M4126-01X GUIDE RAIL L ASSY 1 2002/10/7 M200012 NG
52 KGA-M4127-00X GUIDE RAIL R ASSY. 1
52-1 KGA-M4127-01X GUIDE RAIL R ASSY 1 2002/10/7 M200012 NG
53 90201-063A5 WASHER, PLAIN 2
54 KV7-M112A-00X PLATE SP 1
54-1 Delete 2002/10/7 M1X0008
55 KM8-M117A-00X PLUG 40 M8
55-1 Delete 2002/1/28 M210122
56 KM8-M117B-00X PLUG 104 M6
56-1 Delete 2002/1/28 M210122
57 98903-03006 SCREW BINDING HEAD 12
58 90159-04J01 SCREW, W/WASHER 9
58-1 90990-12J001 SCREW BIN.HEAD W/W 1 2002/9/11 M290029 OK
59 98903-04012 SCREW BINDING HEAD 2
60 98903-05008 SCREW BINDING HEAD 38
61 97601-05310 SCREW PAN HEAD (+) W/W 53
62 91314-03025 BOLT HEX. SOCKET HEAD 4
63 91314-04008 BOLT HEX. SOCKET HEAD 2
64 91314-05008 BOLT HEX. SOCKET HEAD 36
65 91314-05014 BOLT HEX. SOCKET HEAD 2
66 91314-06016 BOLT HEX. SOCKET HEAD 3
67 97004-08012 BOLT HEXAGON 24 (OPTION)
68 KV8-M8502-40X MIST FILTER ELEMENT 1
69 KG7-M8501-40X AIR FILTER ELEMENT 1
70 KGA-M1155-03X BRACKET,UPS 1
71 KGA-M1156-03X PLATE,UPS 1
72 KGA-M1157-03X BRACKET 2,UPS 1
73 KGA-M1158-03X COVER,HARNESS 1
74 KV7-M1515-00X PLATE,RUBBER 1
75 KG2-M8582-40X VALVE 1 spare
A2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M1301-A0X COVER 1 ASSY 1
2 KGA-M1302-A0X COVER 2 ASSY 1
2-1 KGA-M1302-A1X COVER 2 ASSY 1 (2006/7/11) MC60146 OK
3 KGA-M1303-A0X COVER 3 ASSY 1
3-1 KGA-M1303-A1X COVER 3 ASSY 1 (2006/7/11) MC60146 OK
4 KGA-M1304-A0X COVER 4 ASSY 1
5 KV7-M1305-00X COVER 5 2
6 KGA-M1306-A0X COVER 6 ASSY 1
7 KGA-M1307-A0X COVER 7 ASSY 1
8 KGA-M1308-A0X COVER 8 ASSY 1
9 KGA-M1309-A0X COVER 9 ASSY 2 S.T.D
10 KM0-M1331-01X BRACKET GAS DAMPER 4
11 KM8-M1338-01X BRACKET MAIN SWITCH 1
12 KV7-M1336-00X BKT CORNER L BACK 1
13 KV7-M1337-00X BKT CORNER L FRONT 1
14 KV7-M1339-00X BKT CORNER R BACK 1
15 KV7-M1340-01X BRACKET 1 COVER 9 2
16 KV7-M1341-02X BRACKET 2 COVER 9 2
17 KV7-M1342-00X BRACKET 3 COVER 9 2
