Tube Mill 76mm
I. The technical flow of the production line

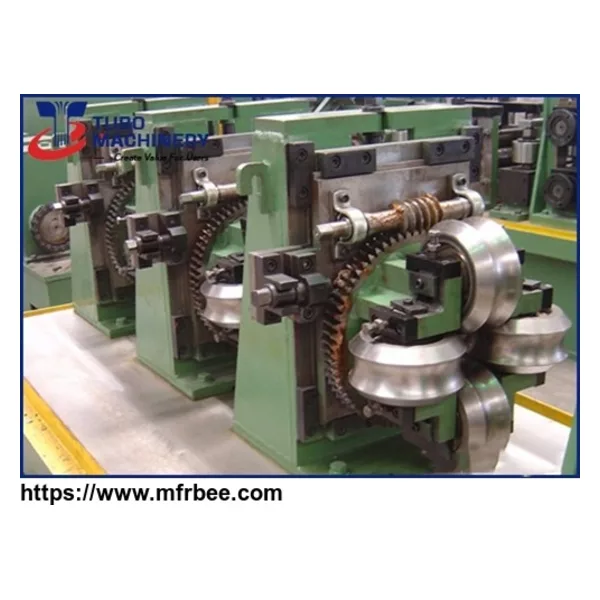

{SteelTape}→Double-head un-coiler→Automatic Strip-head Cutter and welder→Accumulator→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding
unit +squeeze roller) + De-burr frame→Cooling unit→Sizing unit and straightener→Flying saw under computer-control→Run-out table
II. Basic conditions:
1. Production Capacity | |
Round Pipe | 25mm - 76.2mm |
Square & Rectangular | 20*20 - 60*60(40*80)mm |
Wall Thickness |
0.8 - 4.0mm (Round Pipe); 0.8 - 3.0mm(Square Pipe) |
Speed | Max.100mm |
Pipe Length | 4m – 12m |
2. Steel Strip Specification | |
Material | Low Carbon Steel, Q235, Q195 |
Coil I.D. | 460 - 510MM |
Coil O.D. | Max. 1800mm |
Strip Width | 80mm – 240mm |
Strip Thickness | 0.8mm – 4.0mm |
Max. Weight | 3500kgs |
3. Electricity | |
Dynamic power: | 380V, 3 phases, 50Hz (Depending On Local) |
Control Power: | 220V, one phase, 50 Hz |
4. Solid State High Frequency Welder: 250KW | |
5. Electric installed capacity: Appro. 500KW | |
6. Cooling Water | |
Reservoir for High Frequency equipment: | 25m³, one set |
Reservoir for circulating cooling water: | 25m³, one set |
7. Compressed Air | |
Pressure | 0.5 MPA |
Flow | 0.8m3/hour |
8. Line Speed: Max.100m/min | |
9. Size of Whole Line: 65m X 6m (Length X Width) |
We always design and make each line according to each customer's specific requirements, so each customer can buy his own well-content line from us.
For more information, please send us inquiry.
