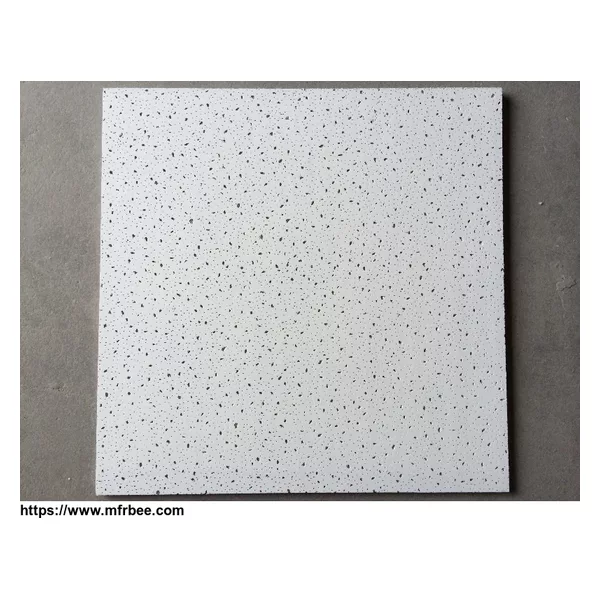

Mineral Fiber Ceiling Board

Mineral Fiber Ceiling Board

Details

Our company has exported ceiling tiles for over 16 years. Till now we can produce more than 18 kinds pattern of mineral fiber ceiling tiles. Those products provide heat insulation and soundproof, which is a durable, versatile choice for many environments:Offices - Retail&Hospitality- Corridors- Auditorium,Cafeteria- Theaters- Libraries- Lounges- Shops- Canteens etc.

Our mineral fiber ceiling tiles can be recycled and reused. They are marketable in many countries,such as Middle East, Africa, Europe, South America, Australia etc.

Product Specifications & Features

ProductItem No.	Panel Size	Edge Profiles	NRC	CAC	LR	Fire Class	Color	RC
HBGT-TY	600X600X10MM	Square Edge	0.55-0.70	35	0.86	Class B	White/Black	66-83%
HBGT-TY	600X600X12MM	Tegular Edge	0.55-0.70	35	0.86	Class B	White/Black	66-83%
HBGT-TY	600X600X15MM	Mic-Tegular Edge	0.55-0.70	35	0.86	Class B	White/Black	66-83%
HBGT-TY	600X600X16MM	Shadowline	0.55-0.70	35	0.86	Class B	White/Black	66-83%
HBGT-TY	600X600X17MM	Interline	0.55-0.70	35	0.86	Class B	White/Black	66-83%
HBGT-TY	600X600X19MM	Besk	0.55-0.70	35	0.86	Class B	White/Black	66-83%

FEATURES:

Material: High Quality Mineral Wool

Surface coating: Vinyl Emulsion Paint

Thermal Conductivity: <=0.065W/mk

Density:280-320kg/m³

Environment protection：No asbestos

RH(Humidity Resistance):Above 90%

Sound Insulation Grade:

30Min Good acoustical performance

Fine texture surface for a clean and contemporary look

RH:75/80/90%

Production Process & National Standards

Quality Control

The national quality inspection standard of mineral fiber ceiling tiles

·1.Appearance quality:
The front should not this items affect the decorative effect : the scratch, color different, pattern is not complete etc. Products should not have cracks, damage, distortion, which can’t effect the decoration.

·2.Size tolerance:
Length+/- 0.5mm; Width+/- 0.5mm;
Thickness+/- 0.5mm

·3.Combustion performance:
Should meet the requirements of GB 8624-1997 B1 in the level, the performance requirements of up to Alevel of products, the two sides agreed by the supplyer and buyer.

·4.Moisture deflection:
Wet absorption plate of the moisture deflection should be no more than 3.5mm The dry absorption plate of moisture deflection should be less than 1.0mm
