NAME: Aluminum Bronze | |||||||||||||
Physical & Mechanical Properties: | |||||||||||||
Solids-Temperature 1030°C Density7.6kg/dm³ Elongation 20% Liquids-Temperature 1045°C Tensile Strength 621N/mm² Brinell Hardness 166HB |
|||||||||||||
Packaging | |||||||||||||

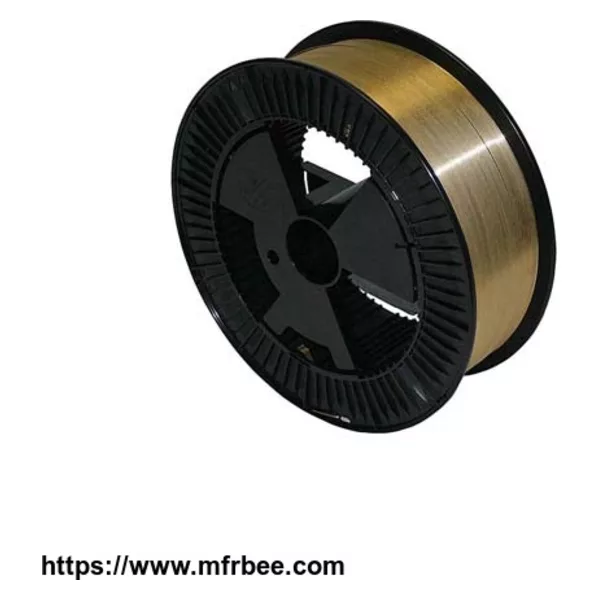

MIG | Diameter | 0.8 - 2.0mm | Packaging | D100mm D200mm D300mm | Weight | 1kg/5kg/12.5kg/13.6kg/15kg | |||||||
0.030"-5/64" | 2lb/10lb/27lb/ 30lb/33lb | ||||||||||||
TIG | Diameter | 1.6 - 6.4mm | Length | 457mm / 914mm | Packaging | 5kg/box 25kg/box 10kg/plastic package | |||||||
1/16" - 1/4" | 18" / 36" | 10lb/box 50lb/box 10kg/plastic package | |||||||||||
Introduction & chemical composition: | |||||||||||||
Recommended for the joining and overlay welding of copper-aluminium alloy, aluminium coated steel and cast iron .It has been widely used in ship building, machery, and the chemical industry. Best for high overlay welding requirement for hardness,resistance to wear, abrasion, and erosion. | |||||||||||||
Standard | Class | Alloy | Cu | Al | Fe | Mn | Ni | P | Pb | Si | Sn | Zn | other |
GB/T9460 | SCu6240 | CuAl11Fe3 | bal. | 10.0- | 2.0-4.5 | - | - | - | max | max | - | max | max |
11.5 | 0.02 | 0.1 | 0.1 | 0.5 | |||||||||
BS EN14640 | Cu6240 | CuAl11Fe | bal. | 10.0-11.5 | 2.0-4.5 | - | - | - | 0.02 | - | - | 0.1 | 0.5 |
AWS A5.7 | C62400 | ERCuAl-A3 | bal. | 10.0-11.5 | 2.0-4.5 | - | - | - | 0.02 | 0.1 | - | 0.1 | 0.5 |
