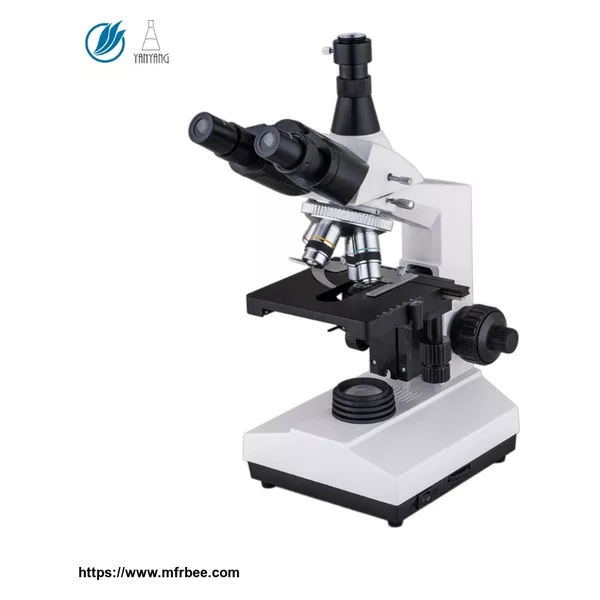

XSZ-107SMYF 40-1600X Trinocular Science Biological Microscope with Lowest Price
Product Quick Detail
- FOB Price
- USD $157.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- 1pcs each PVC box
- Delivery
- 15 Days
Specifications
XSZ-107SM Total Magnification 40X~1000X
Trinocular Biological Microscope
The XSZ-107 Series Biological Microscopes are equipped with
stable frame, and it can fit monocular, binocular, trinocular head on it.
Double layer mechanical stage, with adjustable long handle and coaxial
coarse/fine focus knob make the operation easily. It is built with high quality
achromatic objectives, wide field eyepiece and halogen lamp with adjustable
brightness, which shall guarantee for a best image. With excellent performance and
competitive price, the XSZ-107 Series Biological Microscopes has been
widely applied in schools and universities, medical, health, forestry
and agriculture etc.research institutes and departments
General Specifications
| Components | Specifications |
| Total Magnification | 40X to 1000X |
| Wide Field Eyepiece | WF10X |
| Achromatic Objective | 4X/0.10, 10X/0.25, 40XS/0.65, 100XS/0.85 |
| Eyepiece Head | Trinocular Compensation Free Head |
| Mechanical Tube Length | 160mm |
| Object to Primary Image Distance | 195mm |
| Stand | Built-in Illumination System, Electronic Parts and Connecting Control. |
| Nosepiece | Quadruple Nosepiece |
| Stage | 132mmX140mm |
| Stage Moving Range | 75mmX45mm |
| Condenser | Abbe.NA1.25 |
| Diaphragm | Iris Diaphragm |
| Coarse/Fine Focal Range | 30mm |
| Illumination | 6V 20W Halogen Lamp, Brightness Adjustable |
| Power | AC input 220V ±22V 50HZ±110V,Dc output 6V |
| Net Weight | 6.5KG(subject to actual situation) |
