Escalating demands of automobiles and vehicles and rapid pace of city development has caused serious noise pollution, especially the commercial and residential area which runs along highway, railway and bridges. For this reason, noise barrier is urgently needed to reduce noise level and improve people's living.

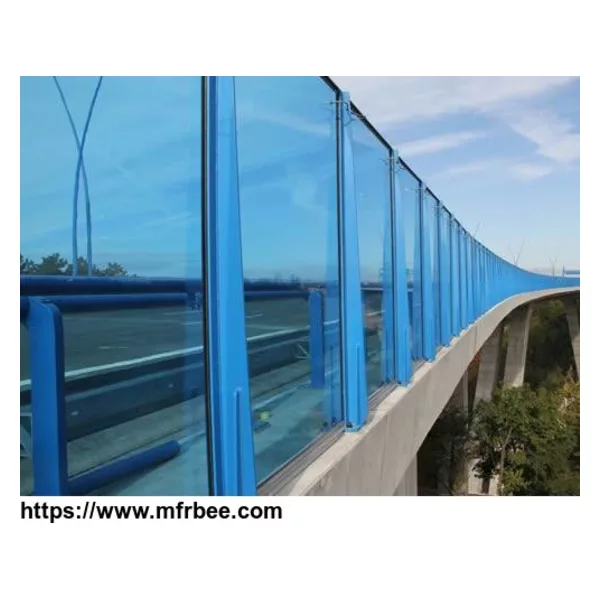

Polycarbonate sound barrier
Thanks to its high light transmission up to 95%, this transparent sound barrier can substantially abate noise pollution while preserving visual views along the soundproofing barriers. In addition, many colors are available which adds special view to the environment.
Polycarbonate sheets are very lightweight and often installed on any solid flames including aluminum, steel, plastic, wood or other materials. Compared with conventional concrete sound barrier, polycarbonate significantly decrease installation time and project cost.
Thickness (mm) | Weight (kg/sqm) | Min. Bending Radius (mm) | Width (mm) | Length (mm) | Color |
---|---|---|---|---|---|
1.5 | 1.8 | 180 | 1220 mm 1560 mm 1820 mm 2100 mm | 3000 | Clear Blue Green Opal Blue-Green Light-Green Opal-Light Bronze (Brown) |
2.0 | 2.4 | 300 | |||
3.0 | 3.6 | 450 | |||
3.5 | 4.2 | 520 | |||
4.0 | 4.8 | 600 | |||
5.0 | 6.0 | 750 | |||
6.0 | 7.2 | 900 | |||
7.0 | 8.4 | 1050 | |||
8.0 | 9.6 | 1200 | |||
10.0 | 12.0 | 1500 | |||
12.0 | 14.4 | 1650 |
