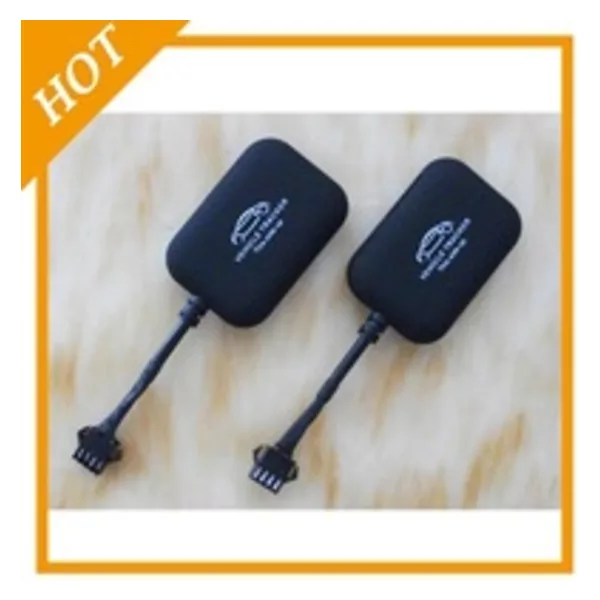

ET-01 vehicle tracker
Product Quick Detail
- Place Of Origin
- China
- FOB Price
- USD $16.00 / Piece
- Minimum Order
- 20
- Packaging
- in bubble bag or gift box
- Delivery
- 5 Days
Specifications
Specification
| Size | 40*58*14.5mm |
| Working Voltage | DC:6~30V |
| Input Fuse | 2A |
| Working Temperature | -40~85°C |
| Humidity | 10% to 90% |
| CPU | MT6261D(260MHz) |
| GSM features |
Highly precise and low noise RF transmitter for GSM/GPRS applications
Transmitter outputs support quad bands: 850/900/1800/1900MHz GPRS class 12
|
| GPS features |
BDS/GPS/GLONASS supportable
Fast acquisition Low current consumption Tracking sensitivity: -162dBm Positioning precision: <5~10 m Speed measurement precision: <0.1m/s
|
| I/O Port |
4 I/O cables
1. Positive 6V-30V. red wire 2. Negative. Black wire 3. Remote cut off engine power. Yellow wire 4. ACC, engine ignition detecting. Green wire |
| LED indication |
Red for GPS
Blue for GPRS |
|
Current
(@12V) |
Sleep mode: 1~4mA
working Current: 25~50mA Charging current: 80~100mA |
Installation:
1. Red wire connects to positive 6V-30V。
2. Black wire connects to ground
3. Yellow wire connects to relay device pin86. Pin85 connects to ground.Pin 30 and 87A connect to oil pump line in series.
4. Green wire connects to ACC or other alarm devices (that is to connect 6V-24V storage battery or impulse to access ACC and alarm mode)
1. Small size and easy installing
2. Support GPS and Beidou system
3. Fast and accurate locating
4. Static drift suppression
5. Store data automatically when no GPRS communication
6. Built-in battery (support 3 hours working time after external power is off)
7. Low power consumption
8. Built-in reset controller ensures system not get stuck
9. Support UDP & TCP communication
Main functions:
l Basic functions:
Position query
Alarm modes
Geo fence
Engine ignition detection
Remote control engine power
Mileage query and correction
Power saving mode
SOS (optional)
Audio monitoring (optional)
l Settings:
Data upload interval
Time zone
Car plate name
SMS & GPRS switch
Alarm SMS switch
DNS
IP & port
TCP & UDP switch
l Alarms:
External power off alarm
Vibration alarm
Movement alarm
Geo fence alarm
Over speed alarm
Low battery level alarm
SOS alarm (optional)
l Power saving mode:
Sleep by time
Wake up by shock sensor
l Checkings:
Firmware version
SIM card ICCID
Device working status
IMEI
l Other functions:
Automatic update positions of vehicle turns
Device reboot
Virtual ignition by sensor
l Network functions:
PC web/APP tracking
Real time tracking
Alarm record
History play back
Packaging detail:
Tracking device
Power cable
User manual
Gift box
Optional accessories:
Relay
Power adapter (support up to 90V input)
