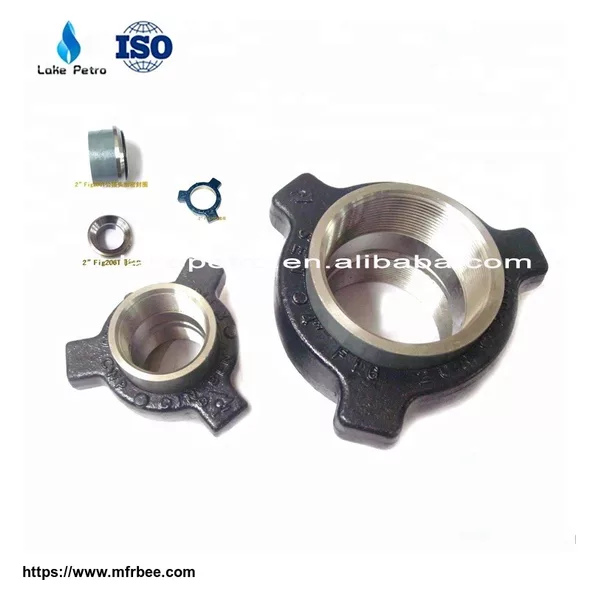

High-quality API Standard Fig 1502 Hammer Union

Hammer Unions are designed as heavy duty, high pressure flow line connectors, which is commonly applied to chemical plants, on marine dredging vessels, in strip mines and in the oil industry. The color coding system on Hammer Unions represent the different configurations and pressure ratings.

Figure 100 Hammer Union

Nominal pipe size: 2”, 2 1/2”, 3”, 4”, 6”,8”.

Pressure Rating: 1000 psi cwp; 1500 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: Manifolds and line connections.

Figure 200 Hammer Union

Nominal pipe size: 1”, 1 1/4”, 1 1/2”, 2”, 2 1/2”,3”, 4”.

Pressure Rating: 2000 psi cwp; 3000 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: General service manifolds and lines.

Figure 206 Hammer Union

Nominal pipe size: 1”, 2”, 3”, 4”, 6”, 8”, 10”.

Pressure Rating: 2000 psi cwp; 3000 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: Manifolds and line connections, suction service, corrosion service.

Figure 400 Hammer Union

Nominal pipe size: 2”, 2 1/2”, 3”, 4”, 6”, 8”, 10”, 12”.

Pressure Rating: 4000 psi cwp; 6000 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: Manifolds and line connections, pump suction, mud service.

Figure 600 Hammer Union

Nominal pipe size: 1”, 2”, 3”, 4”.

Pressure Rating: 6000 psi cwp; 9000 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: Steam service, boiler connectors, manifold, line connections for production, drilling, well servicing.

Figure 602 Hammer Union

Nominal pipe size: 1”, 2”, 3”, 4”.

Pressure Rating: 6000 psi cwp; 9000 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: Manifolds and line connections and mud service.

Figure 1002 Hammer Union

Nominal pipe size: 1”, 2”, 3”, 4”, 5”, 6”.

Pressure Rating:

（1）1” to 4”: 10000 psi cwp; 15000 psi test.

（2）5” to 6”: 7500 psi cwp; 12000 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: Cementing, fracturing, acidizing, testing, choke and kill lines.

Figure 1003 Hammer Union

Nominal pipe size: 2”, 3”, 4”, 5”.

Pressure Rating:

（1）2” to 3”: 10000 psi cwp; 15000 psi test.

（2）4” to 5”: 7500 psi cwp; 12000 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: For high-pressure connections where lines can’t be aligned.

Figure 1502 Hammer Union

Nominal pipe size: 2”, 3”, 4”.

Pressure Rating: 15000 psi cwp; 22500 psi test.

Connections Type: pipeline thread, tubing thread, butt-weld.

Component Part: Nut, Male sub, Female Sub, Sealing Ring.

Sour Service Models to NACE MR-01-75.

Recommended service: Cementing, fracturing, acidizing, testing, choke and kill lines.

2. Main Technical Parameters:

3. Features:

(1). Provided with weak nitrile rubber sealing ring and used for sealing and protecting combination of union steel pairs.

(2). Recommended for connection of manifolds and pipe lines, vehicle-mounted system and mud transportation and also can be used as non-pressure seal union.

(3). Suitable for air, water, oil and gas service.

(4). Made of high-quality steel by forging and finishing cut.

(5). Adopts some end connections of pipeline thread, tubing thread, butt-weld.

(6). With self-lockubf type ACME thread design.

(7). Repd tighting and remove.

(8). Made by international standard, and can be interchangeable with imported parts.

(9). Seal with high pressure resistant.

(10). Using NC mechine tool processing Seiko degree is high.

(11). Type, specification indentifies die forging on the wing nut, indentification and convenient.

4. FAQ:

Why you need to choose Lake Petro?

As a professional oil and gas service company, Lake Petro has many good experience in selling and serves for the oilfield industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.

Can you make us the best quality products as well as a good price?

Yes,we can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us yourmoney will be safe.

What is special compare with other companies?

First, we provide the quality products, with BV and API certified; At the same time, we provide our customer with the best service after sale, any time any where.
