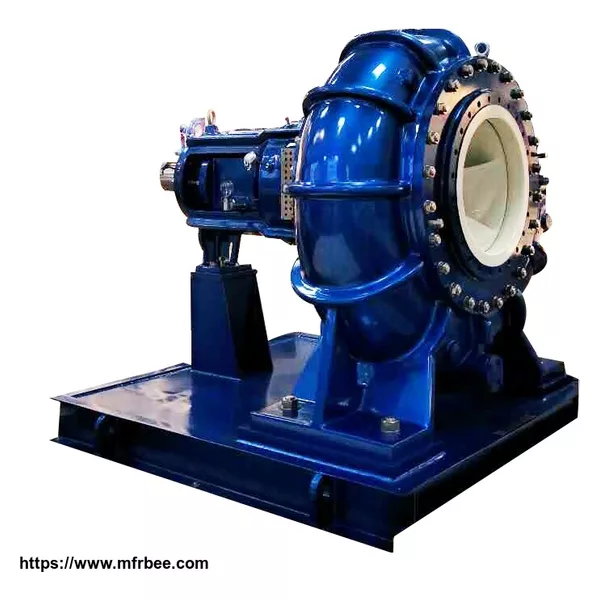

Flue Gas Desulfurization Ceramic Pump

The ACP-TL Advanced Ceramic Desulfurization pump has its own unique character on the wear resistance, corrosion resistance than the metal lined pump, which makes its longer service life and wide range working applications. Also, the ACP pump has the obvious advantage in the energy saving, reducing maintenance, cost reducing. Recently this pump is running successfully in the domestic 1000MW power plant’s FGD system as the limestone circulation pump. The silicon carbide ceramic material impeller and other wet spare parts are performing excellence in the wear resistant environment. In all of these applications, there is no wear out appears.

The ACP-TL Advanced Ceramic Desulfurization pump has obtained the utility patent of a desulfurization pump

lined with silicon carbide ceramics.

Main technical parameter

Flow：450-19000m³/h Head：18-40m

Speed：n=495-1450r/min

Outlet Diameter：DN200-DN1000

Application range：

Temperature of media：-20-120°C Media Ph：1-14

Chloride Concentration：≤80g/l

Solid particle content：≤20% Max solid size：≤6mm
